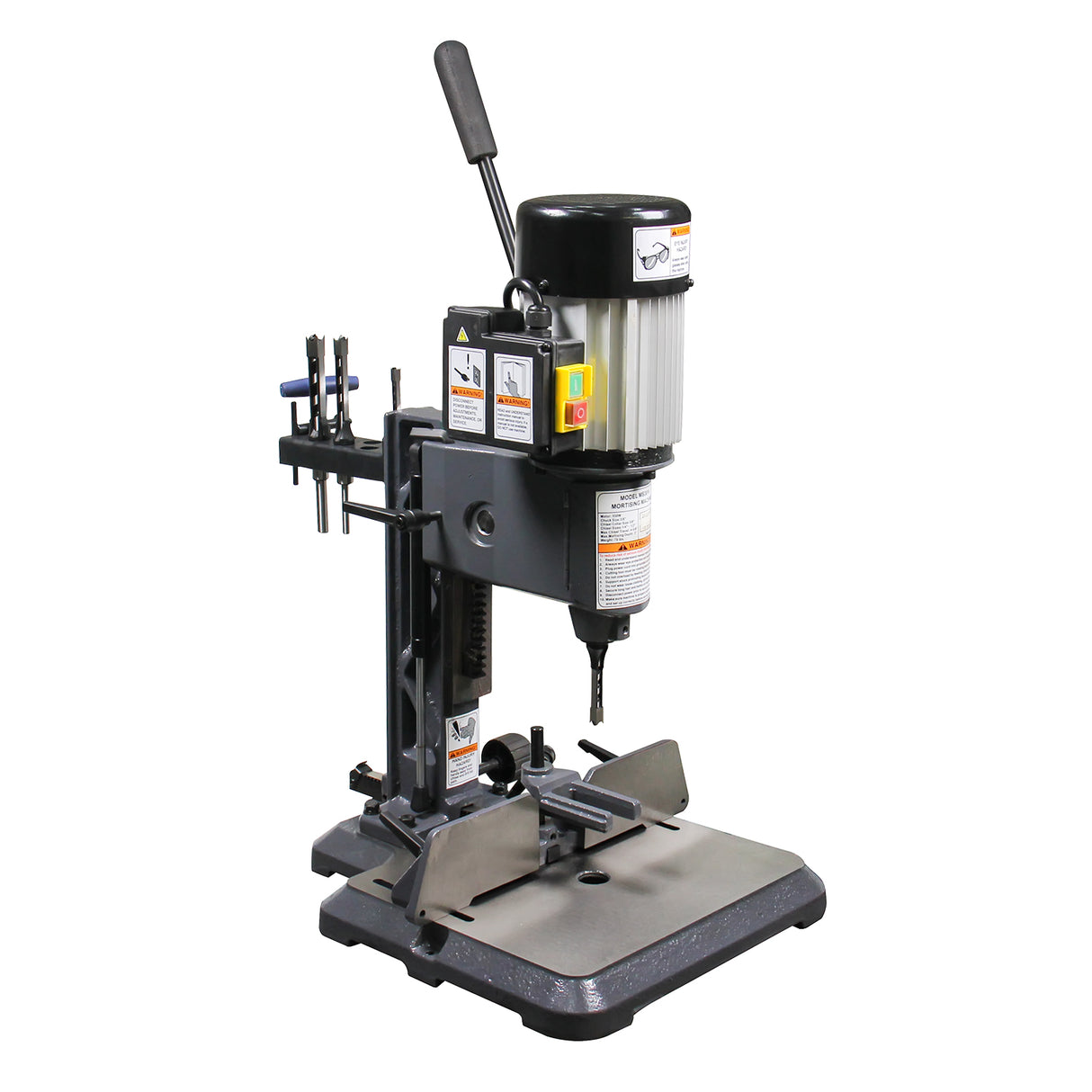

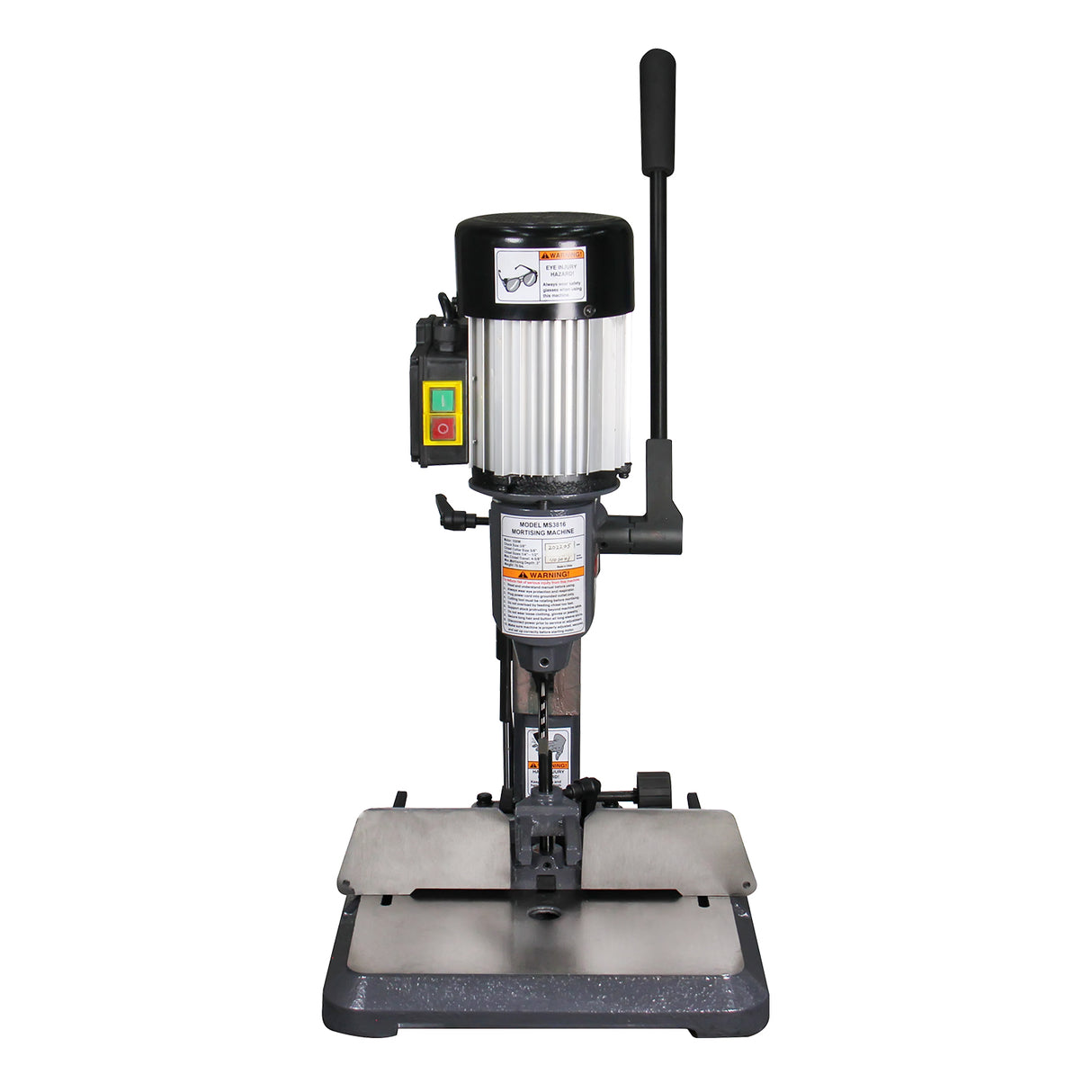

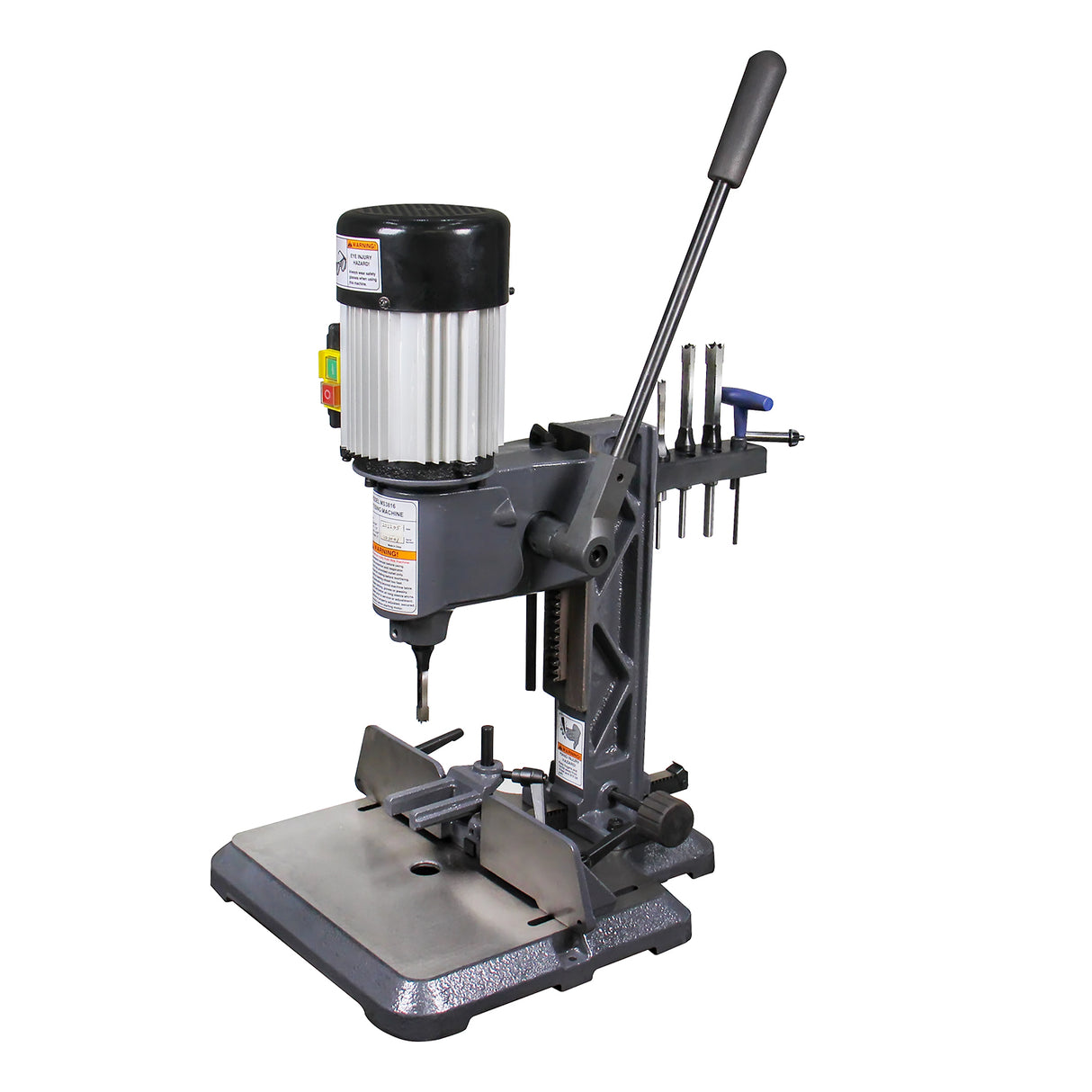

Kang Industrial MS-3816 Bench Top Mortise Machine, With 4 Sizes Chisel Bit Sets, Round Holes and Square Hole Mortising

$550.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

Business at home is treated as Residential

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

KANG Industrial MS-3816 Wood Mortising Machine

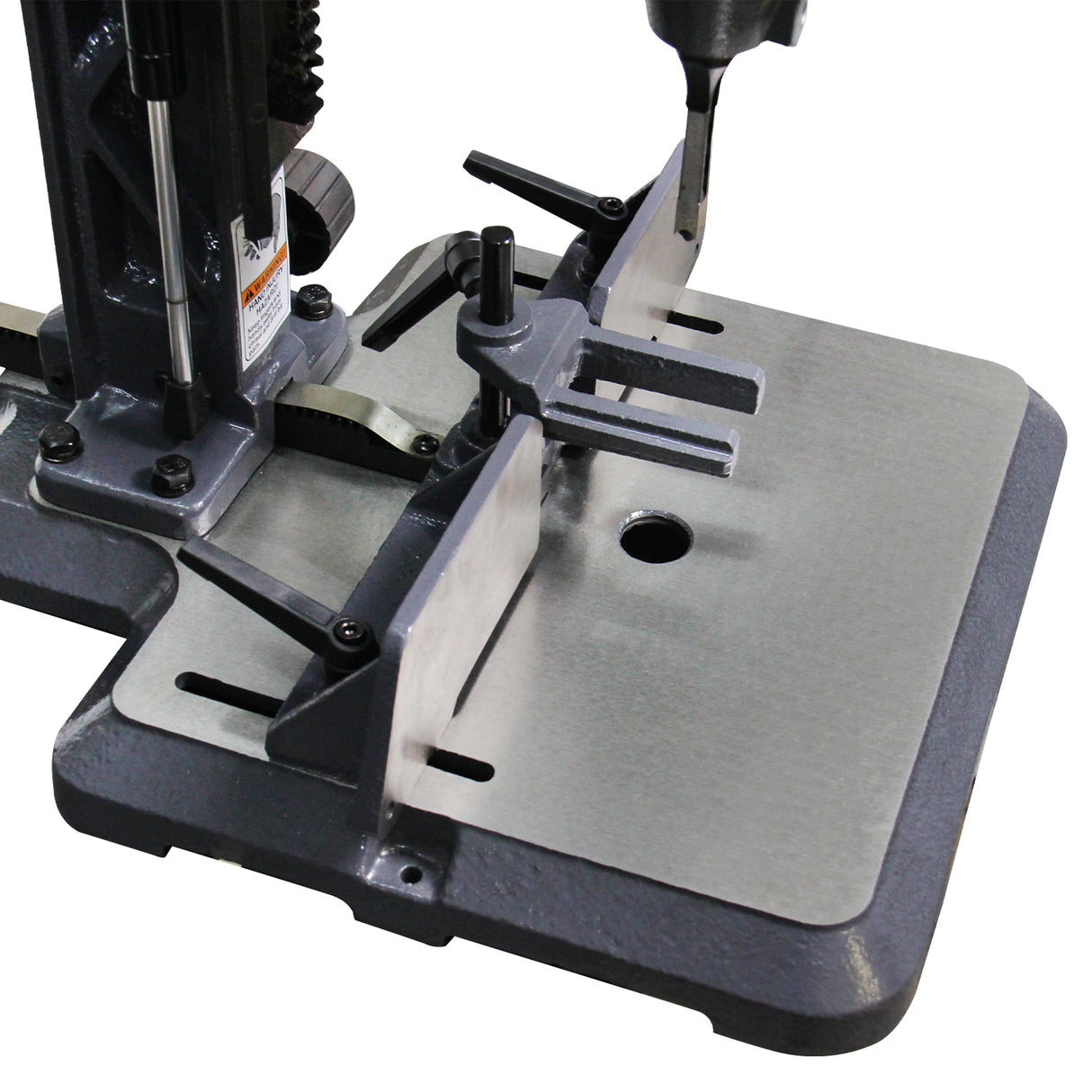

 Cast iron structure, 76 mm max. mortise depth



Features

1/2HP powerful motor runs on 240V power, suitable for home use

Quick action material clamp

Tool storage rack on the back of the column to put the standard chisels

The dovetailed column and head, move smoothly

With a riser block for increasing the capacity,  44.5mm height

Adjustable depth stop to get the same mortising depth

Standard with four chisels : 1/4", 5/16", 3/8" and 1/2"



Specifications

SKU 462201
Model MS3816
Motor 1/2HP,  0.375 kW
Spindle speed 1440 rpm
Spindel taler JT #2
Spindel travel 83 mm

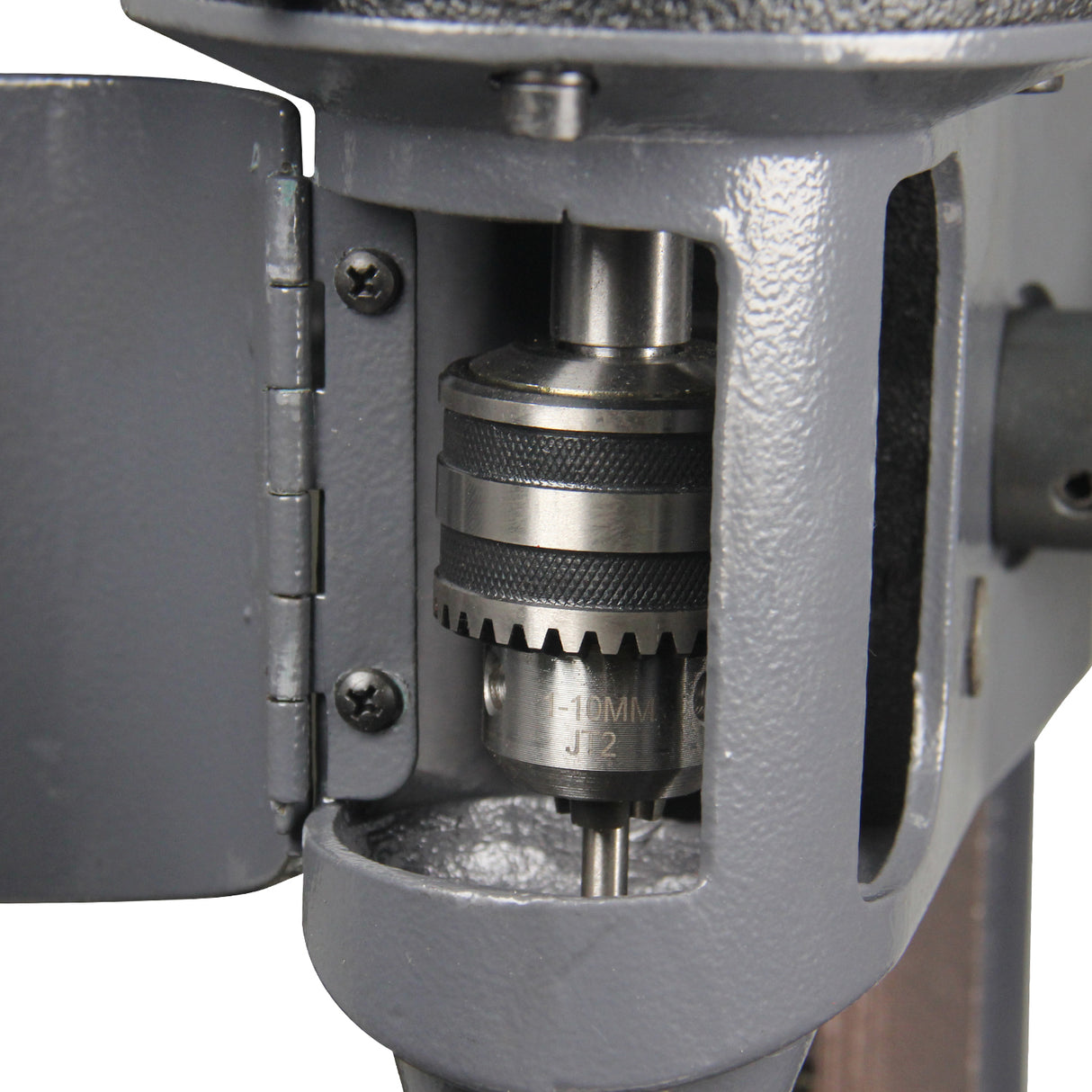

Chuck size 10 mm
Collar size 16 mm
Max. stock width 216 mm
Max. stock thickness 153 mm
Max. mortising depth 76 mm
Max. chisel travel 118 mm
Packing size 67x25x34 cm
N.W./G.W. 35/41 kg



Upgrade Your Woodworking with Kang Industrial MS-3816 Bench Top Mortise Machine - Includes 4 Chisel Bit Sets for Round and Square Hole Mortising
KANG INDUSTRIAL PTY LTD

Kang Industrial MS-3816 Bench Top Mortise Machine, With 4 Sizes Chisel Bit Sets, Round Holes and Square Hole Mortising

$550.00

KANG Industrial MS-3816 Wood Mortising Machine

 Cast iron structure, 76 mm max. mortise depth



Features

1/2HP powerful motor runs on 240V power, suitable for home use

Quick action material clamp

Tool storage rack on the back of the column to put the standard chisels

The dovetailed column and head, move smoothly

With a riser block for increasing the capacity,  44.5mm height

Adjustable depth stop to get the same mortising depth

Standard with four chisels : 1/4", 5/16", 3/8" and 1/2"



Specifications

SKU 462201
Model MS3816
Motor 1/2HP,  0.375 kW
Spindle speed 1440 rpm
Spindel taler JT #2
Spindel travel 83 mm
Chuck size 10 mm
Collar size 16 mm
Max. stock width 216 mm
Max. stock thickness 153 mm
Max. mortising depth 76 mm
Max. chisel travel 118 mm
Packing size 67x25x34 cm
N.W./G.W. 35/41 kg
