Description
Description

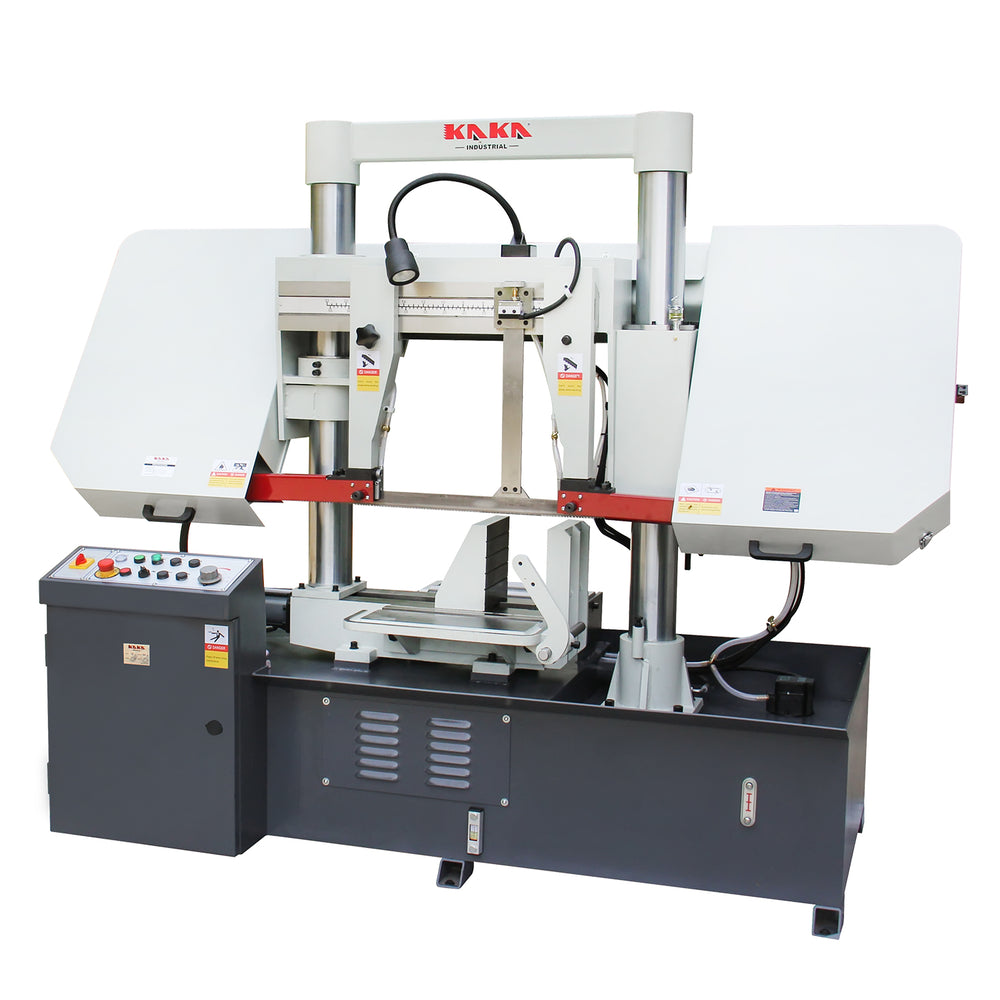

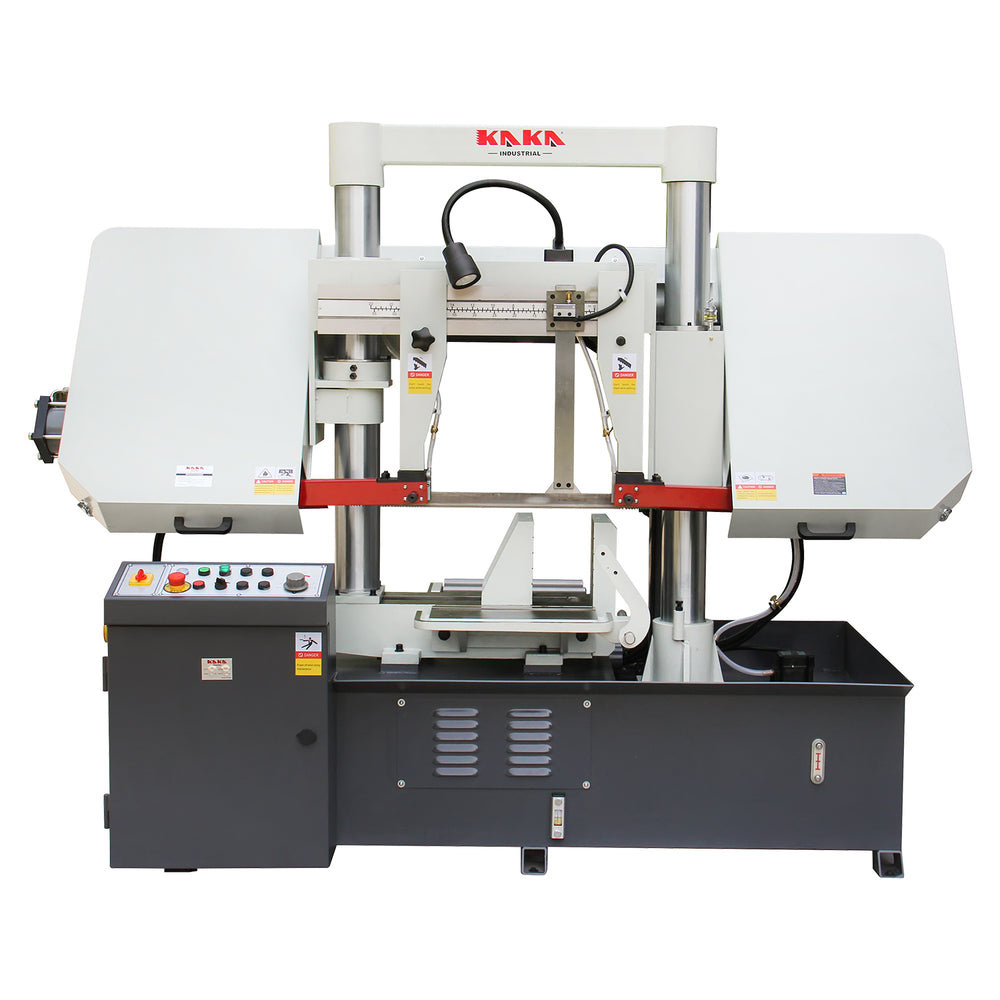

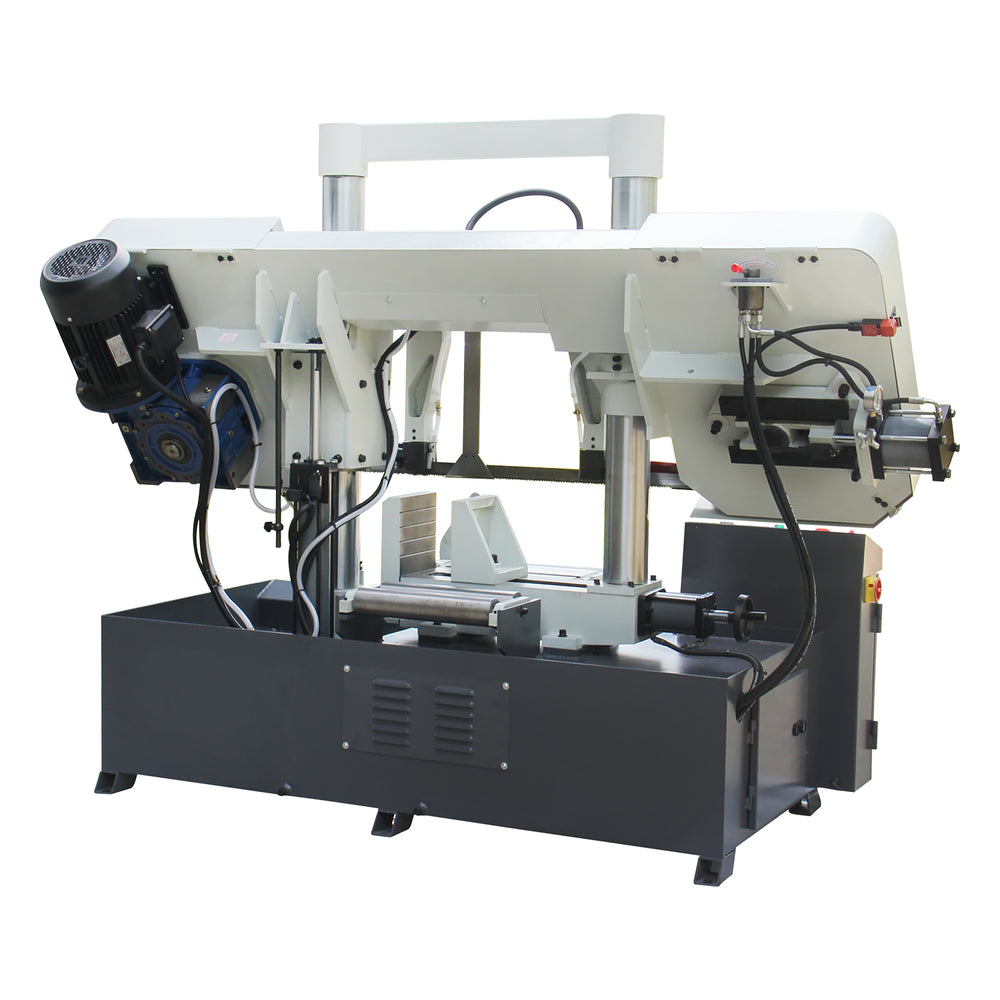

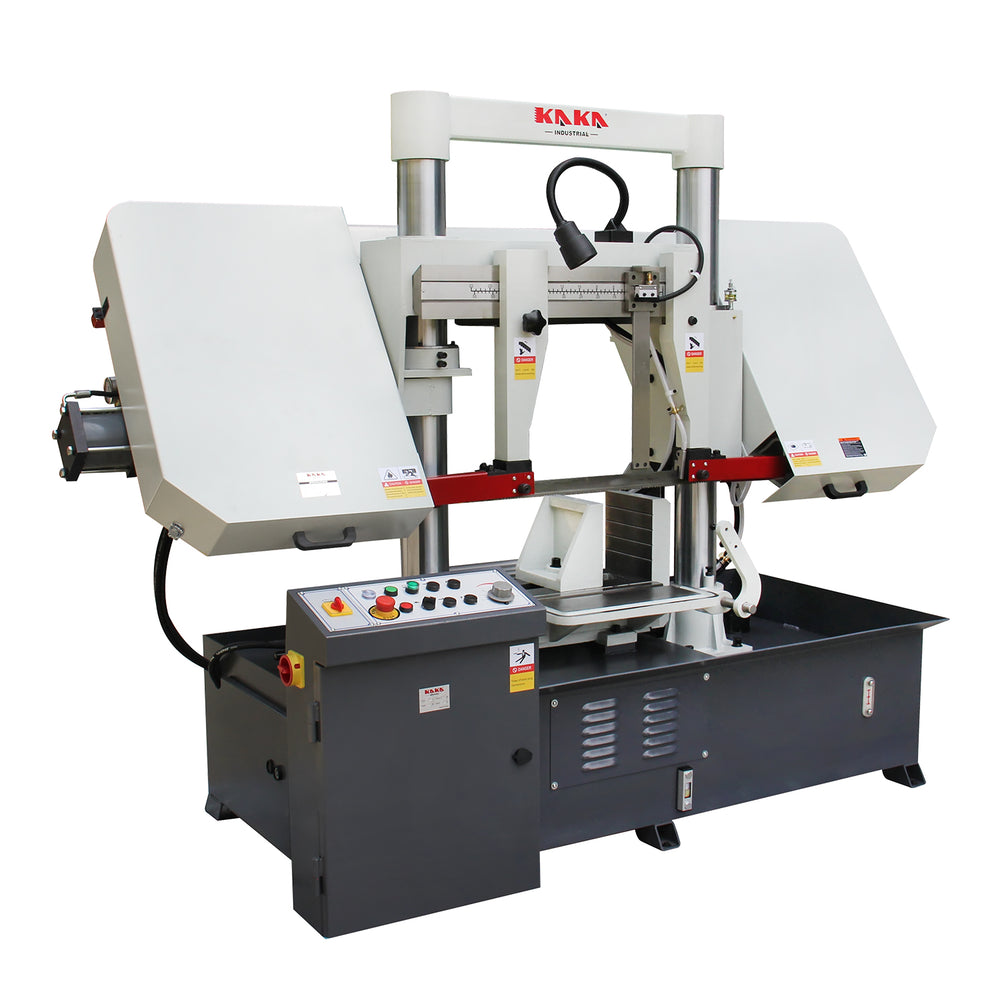

KANG industrial TGK-16 Double Column Band Saw
Cut 400mm OD and 400x400 square solid material
Features
Runs on 415V power
3.0/4.0 kW double speed motor to get two saw blade speed, 36,56 m/min
Double column structure, saw frame vertical lifting, high stability
Saw frame descent by hydraulic control, variable speed

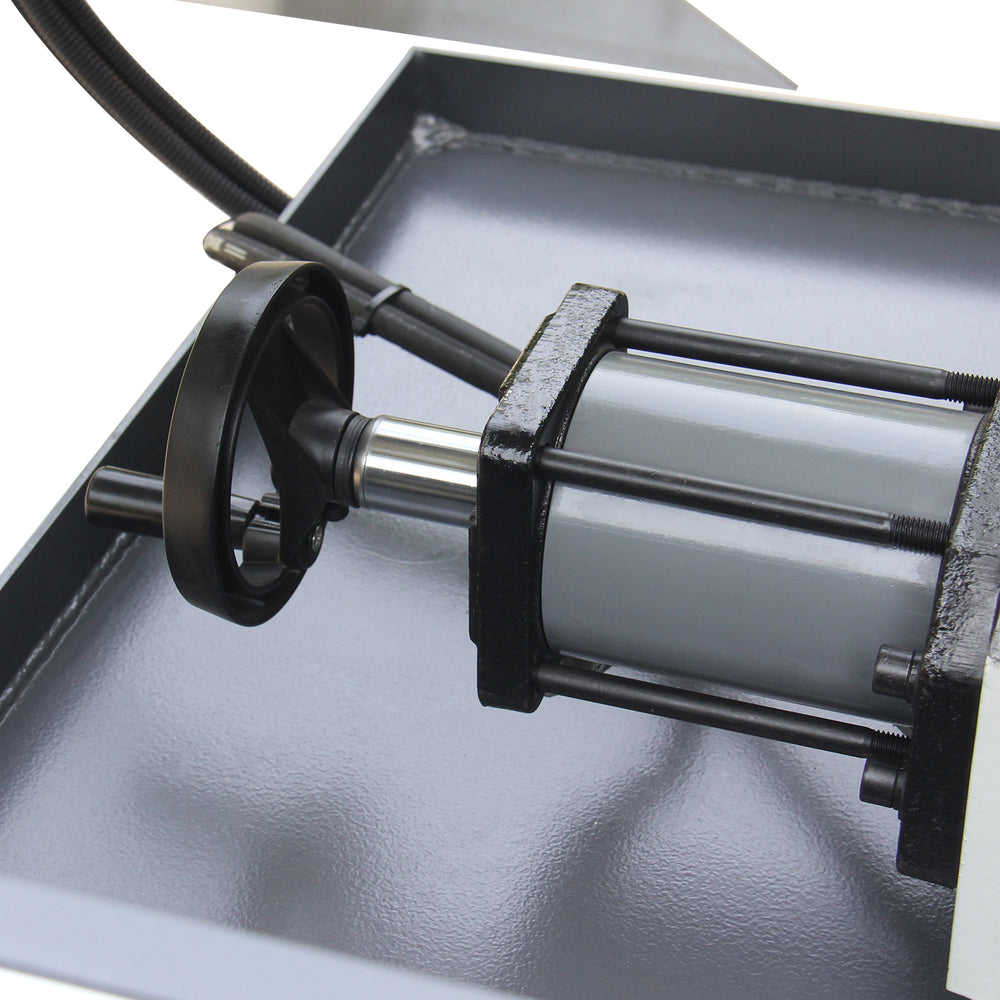

Hydraulic clamping vice and hydraulic blade tension adjustment
Standard working light and cooling system
OPTIONAL: Variable blade speed with extra cost.
Specifications
| SKU | 188303 |
| Model | TGK-16 |
| Max. cutting capacity | ø400-400x400 mm |
| Cutting speed | 36,56 m/min |
| Feeding speed | Hydraulic, variable speed |
| Balde size | 41x1.1x5000 mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Hydraulic |
| Main motor power | 3.0/4.0 kW |
| Oil pump motor power | 0.75 kW |
| Coolant pump motor power | 0.9 kW |
| Drive | Gear |
| Packing size | 270x135x215 cm |
| N.W./G.W. | 1325/1585 kg |
