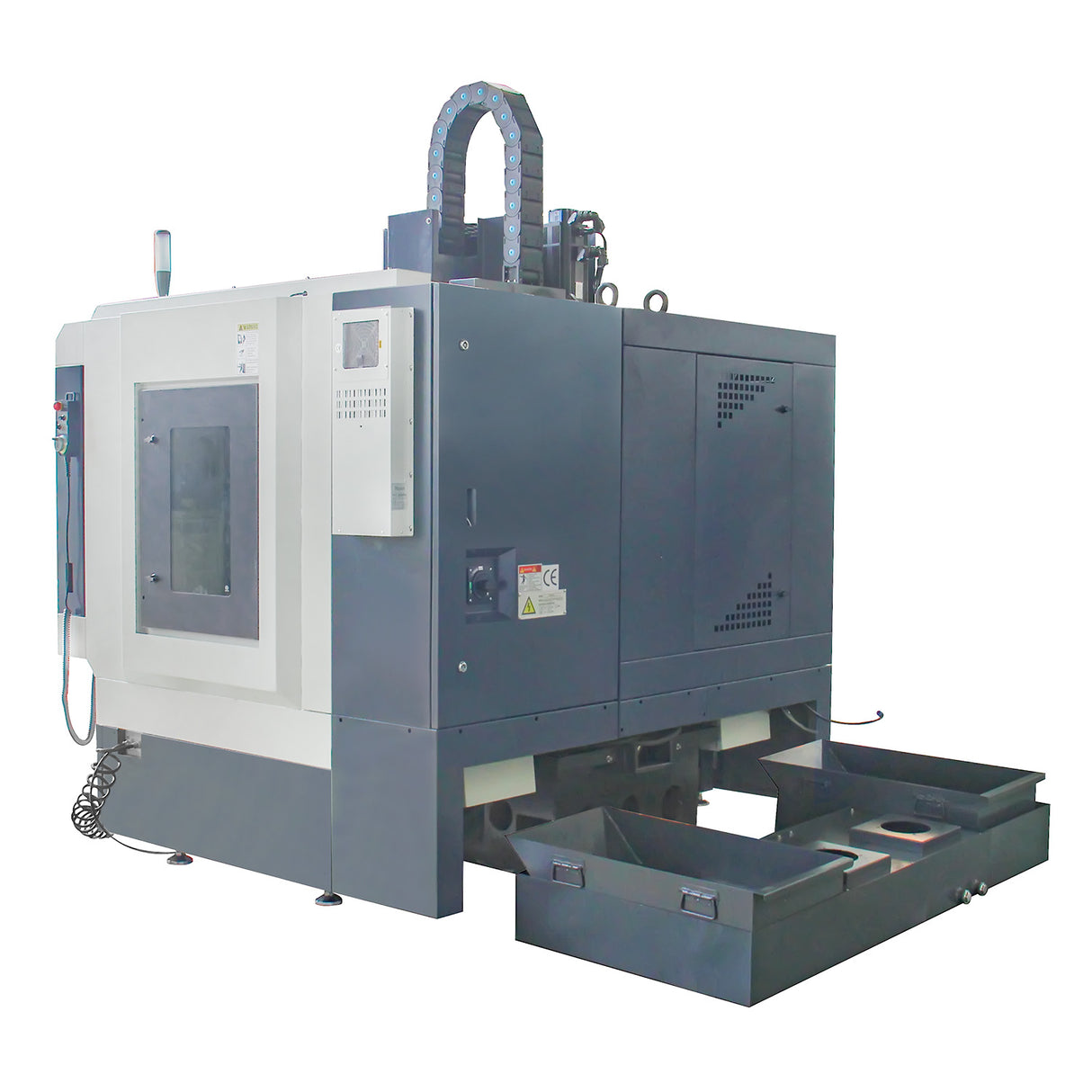

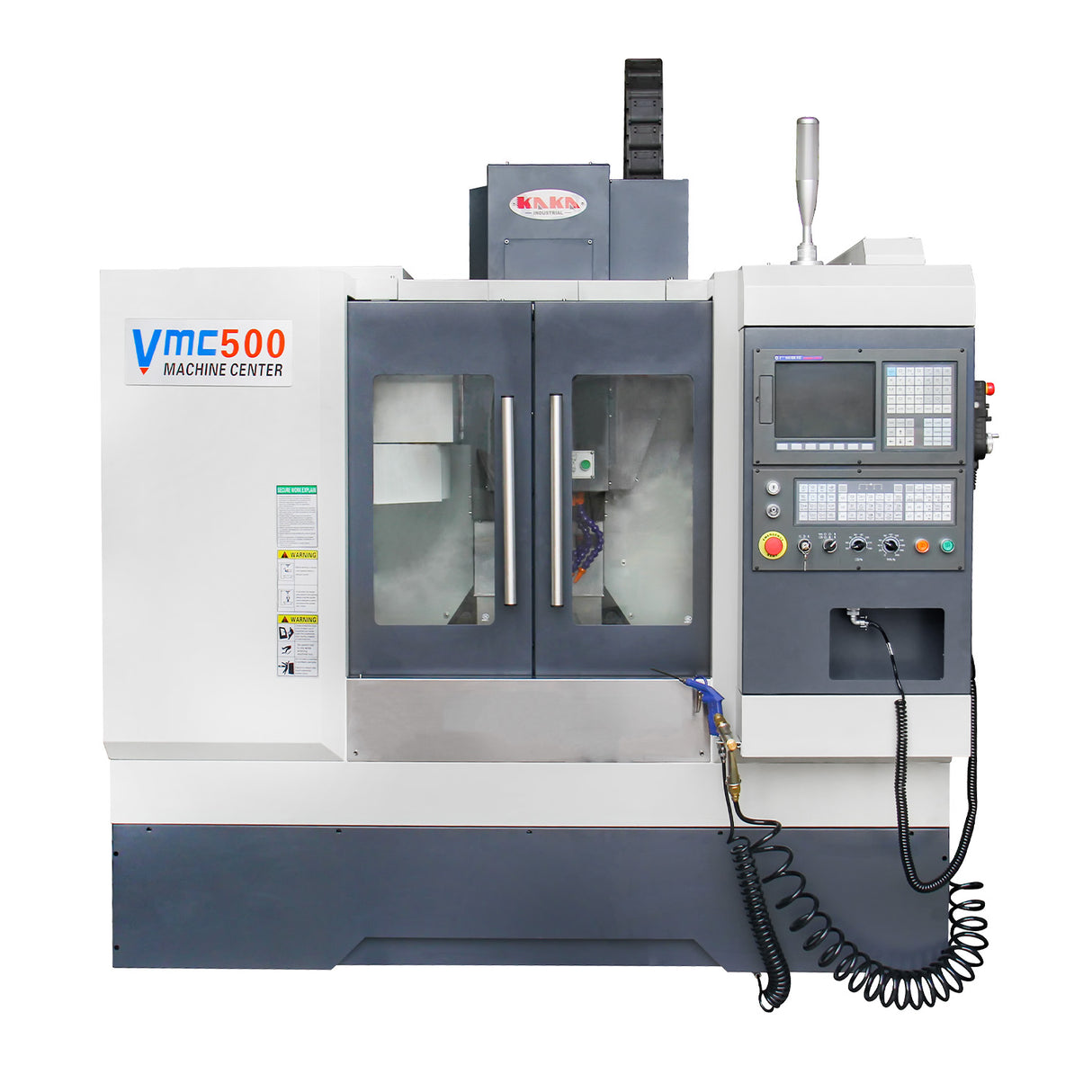

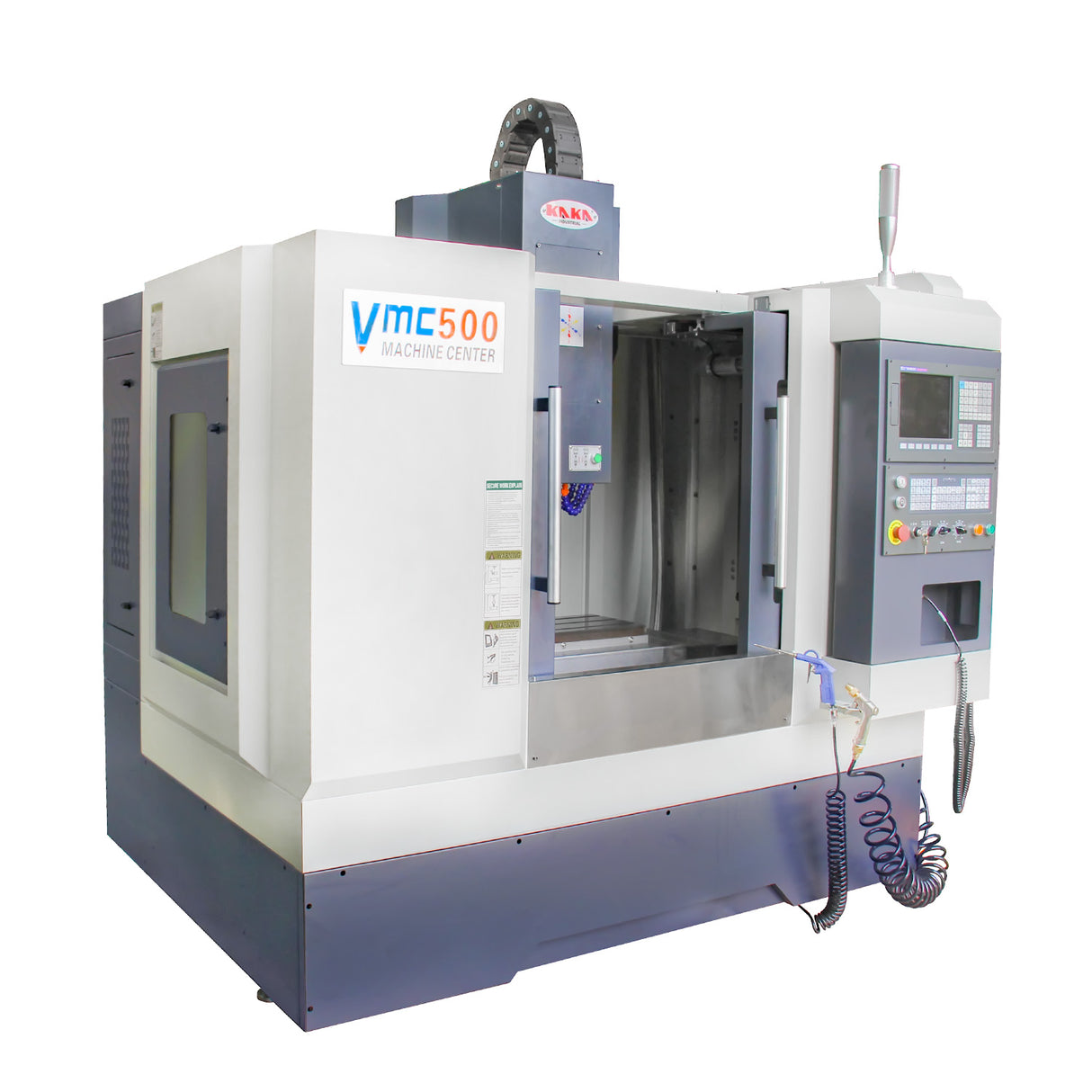

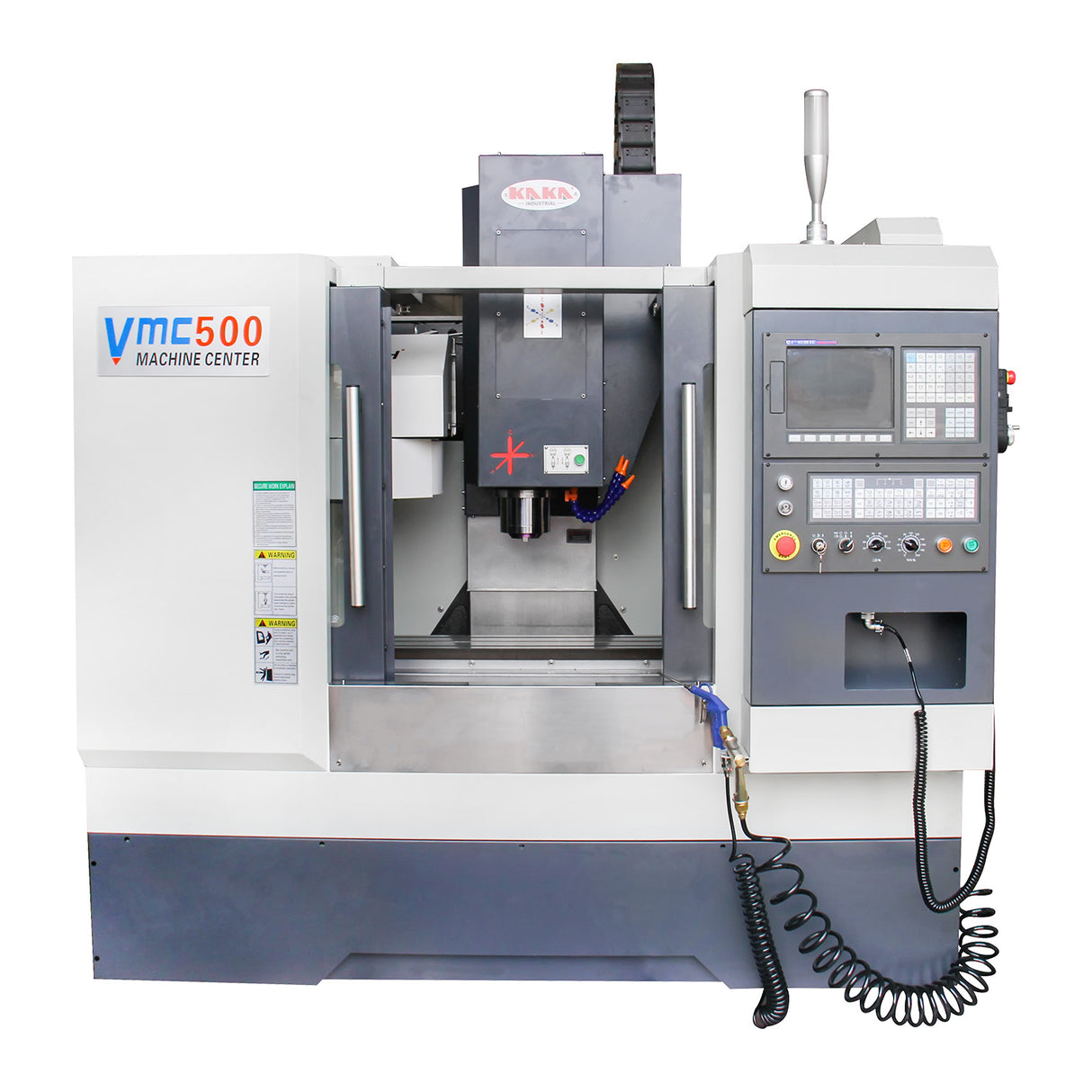

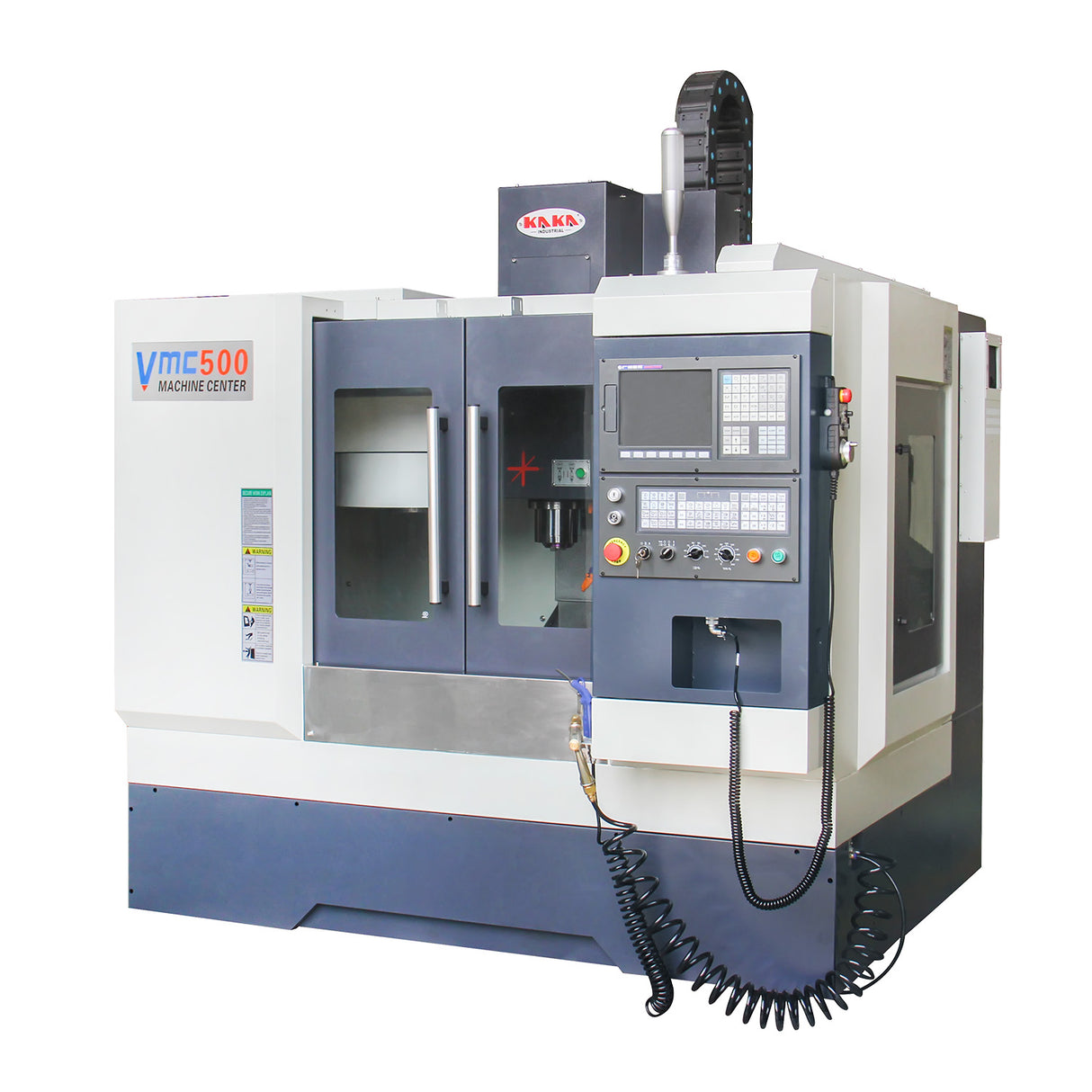

Kang Industrial Vertical Machining Center
3-Axis CNC Center, table size 800x260mm
Features

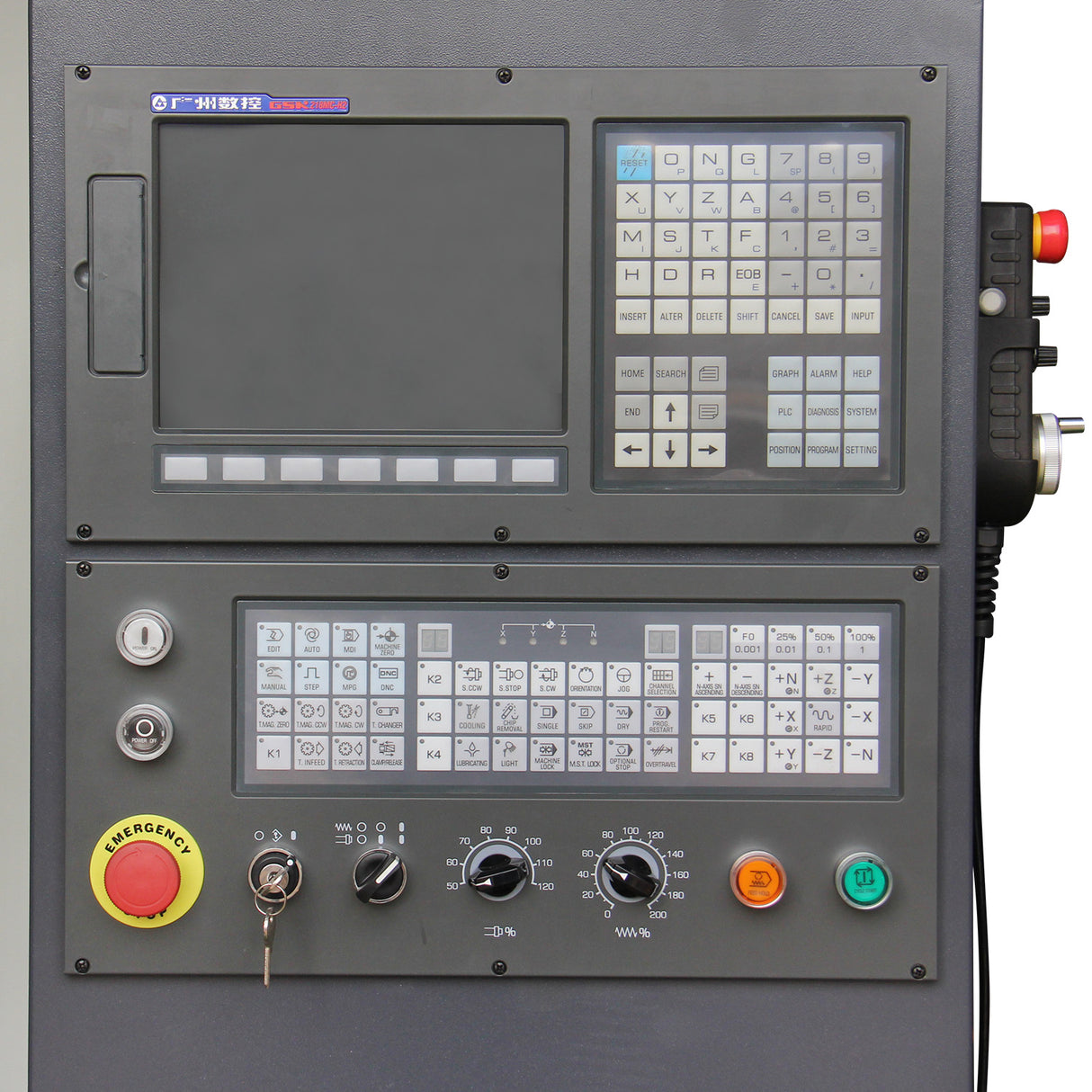

GSK CNC System

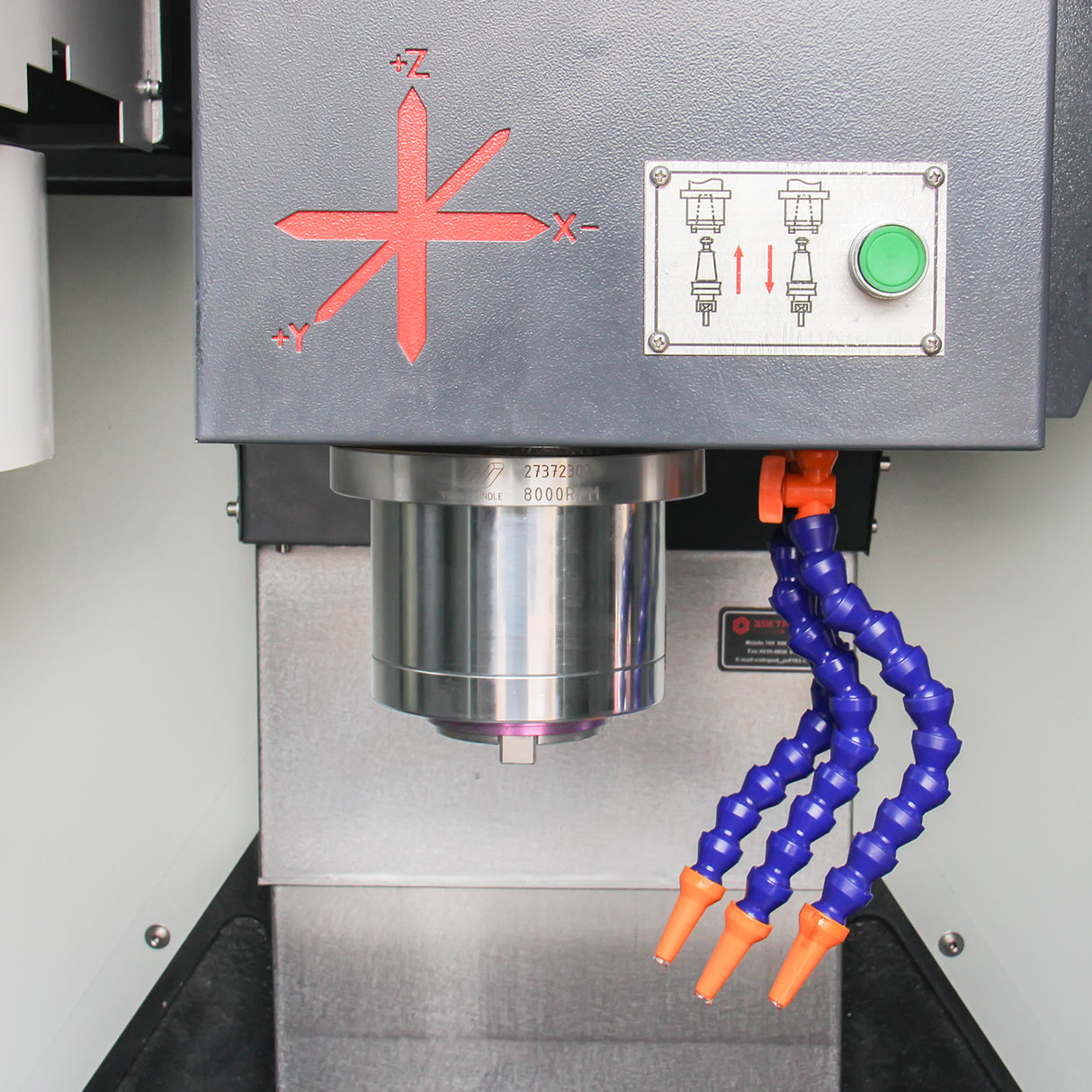

8000 rpm spindle speed
HIWIN line rails

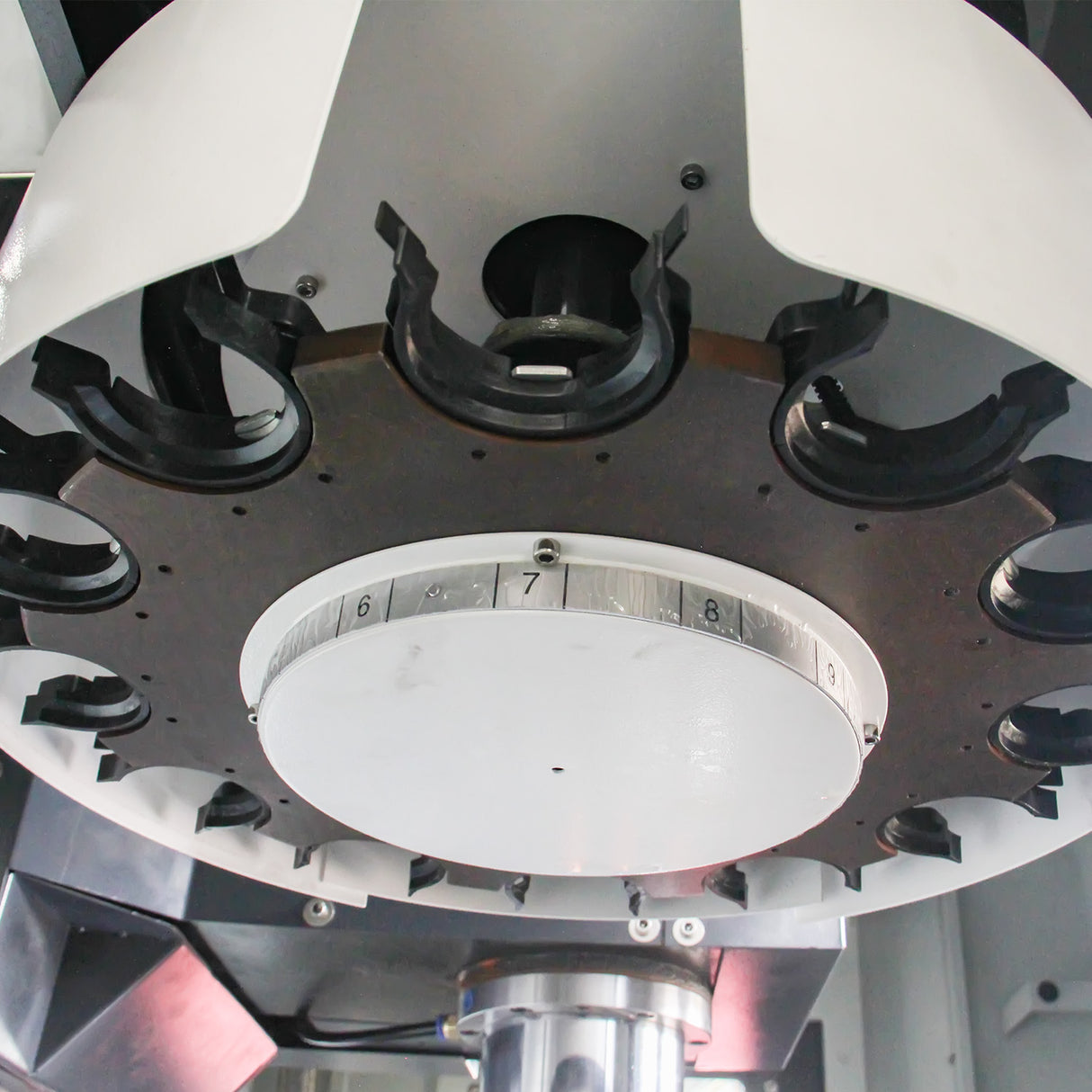

12 Tools in Tool Magazine
Tool changing time (T-T), 6s
Pre-order now, and get a free tool holder DJC-940C
Specifications
| SKU | 162401 |
| Model | VMC500 |

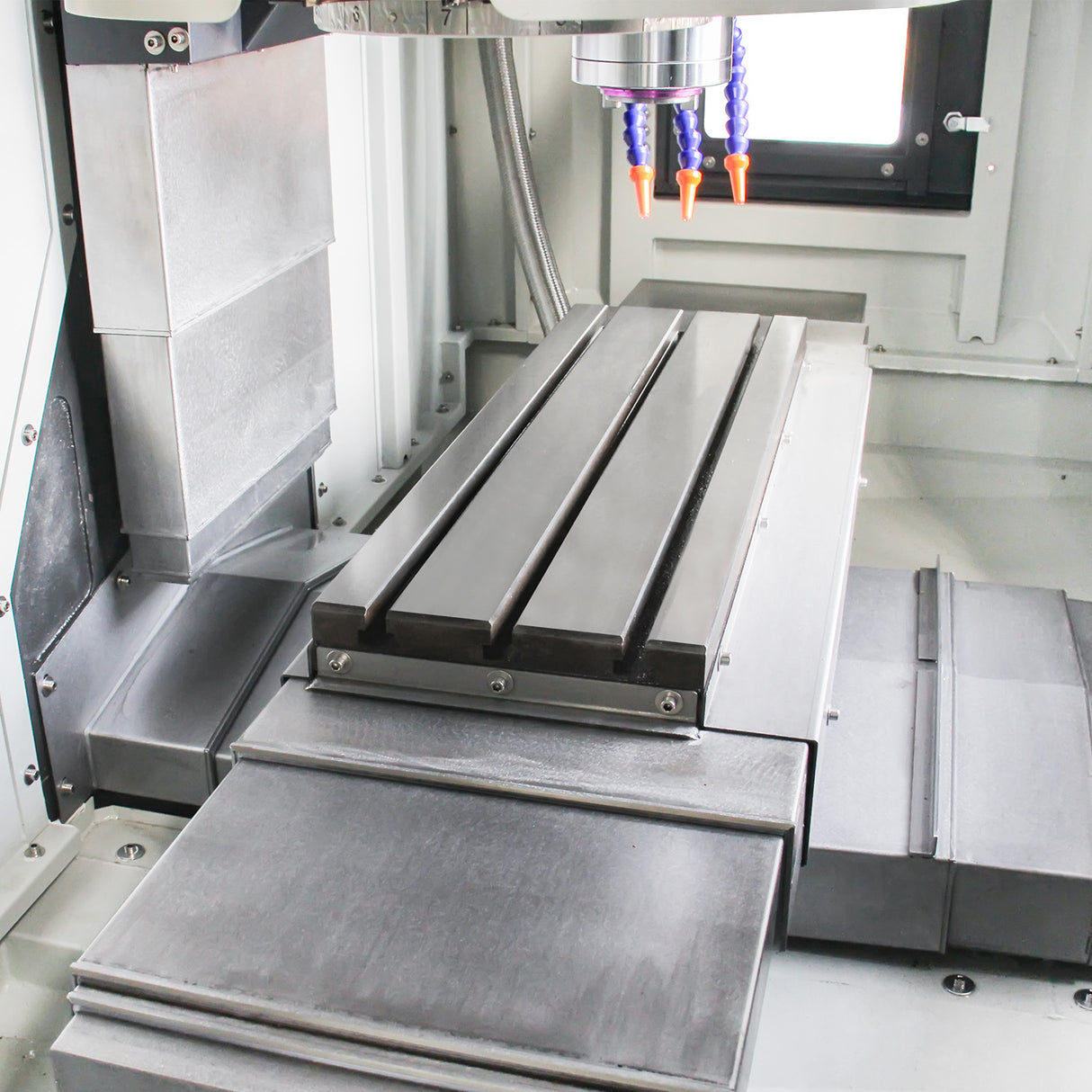

| Table size | 800*260 m |
| T-slot(N*W*D) | 3-14-85 mm |
| Max. load bearing of the worktable | 200 kg |
| Table to ground | 780 |
| X-axis travel | 500 |
| Y axis travel | 350 |
| Z axis travel | 450 |
| Distance from column front to Spindle center | 350 |
| Distance from tabletop surface to Spindle nose | 90-540 |
| Spindle hole taper | BT40-120 |
| Spindle transmission mode | Belt |
| Spindle power | 3.7/5.5 |
| Max. Spindle speed | 8000 |
| X-axis: quantity/width/type | 2/25/ ball |
| Y axis: quantity/width/type | 2/30/ ball |
| Z axis: quantity/width/type | 2/30/ ball |
| X-Y-Z | 6-6-15/1.5-1.5-2.3 |
| Max. feed speed | 1-10000 mm/min |
| Rapid feed speed (XYZ) | 24/24/24 m/min |
| Positioning accuracy(XYZ) | ±0.005/300 |
| Re-positioning accuracy(XYZ) | ±0.003/300 |
| Tool Magazine（ Carousel tool hanger） | 12-position umbrella tool magazine |
| Tool magazine capacity | 12 pcs |
| Tool changing time (T-T) | 6 s |
| MAX.Tool Diameter（Full knife/be in the air/sky） | 104/205 mm |
| MAX.Tool Length | 250 mm |
| Tool weight | 8 kg |
| Machine size L*W*H | 2200*2100*2500 mm |
| Machine weight | 2000 kg |
