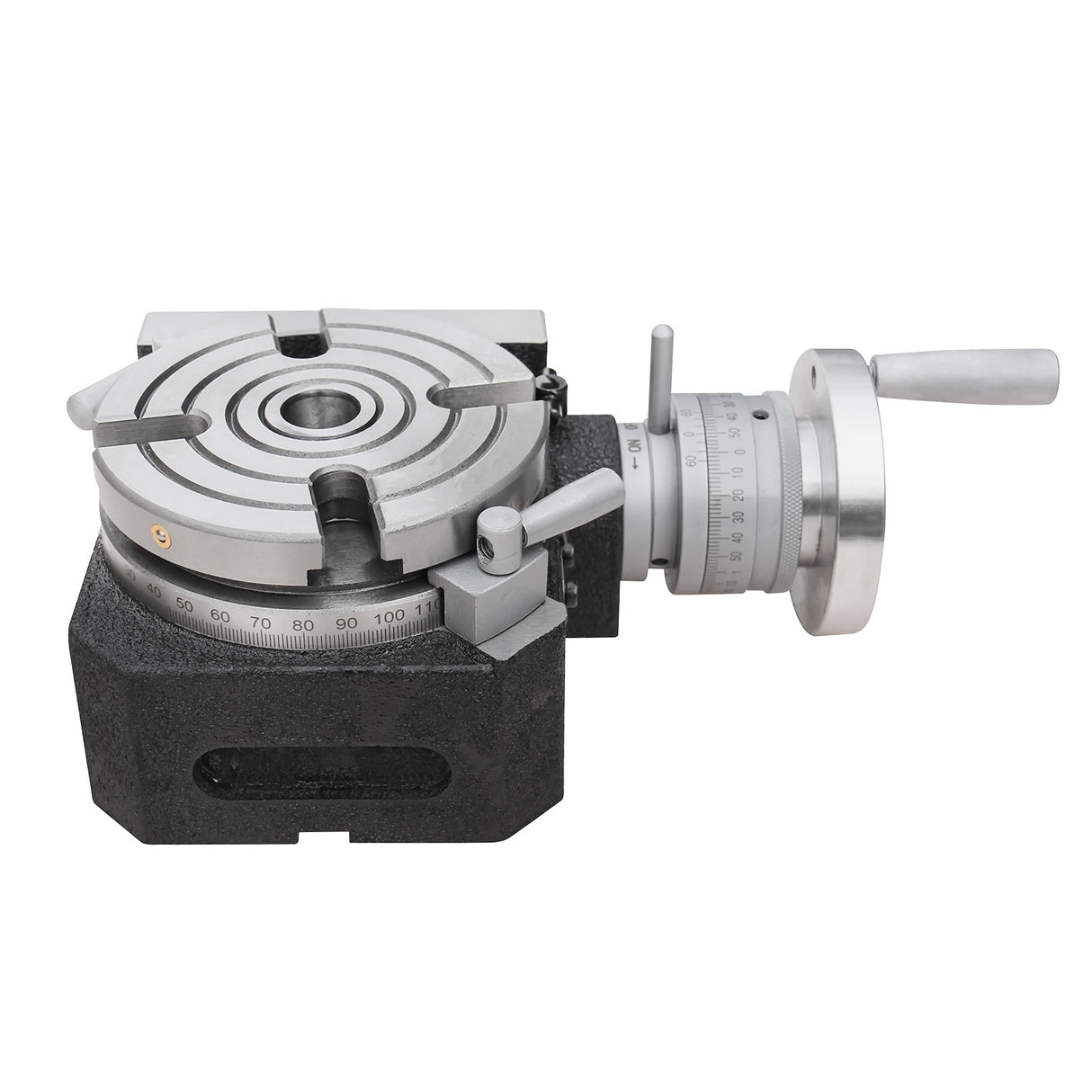

Kang Industrial Rotary Tabel with Dividing Plate

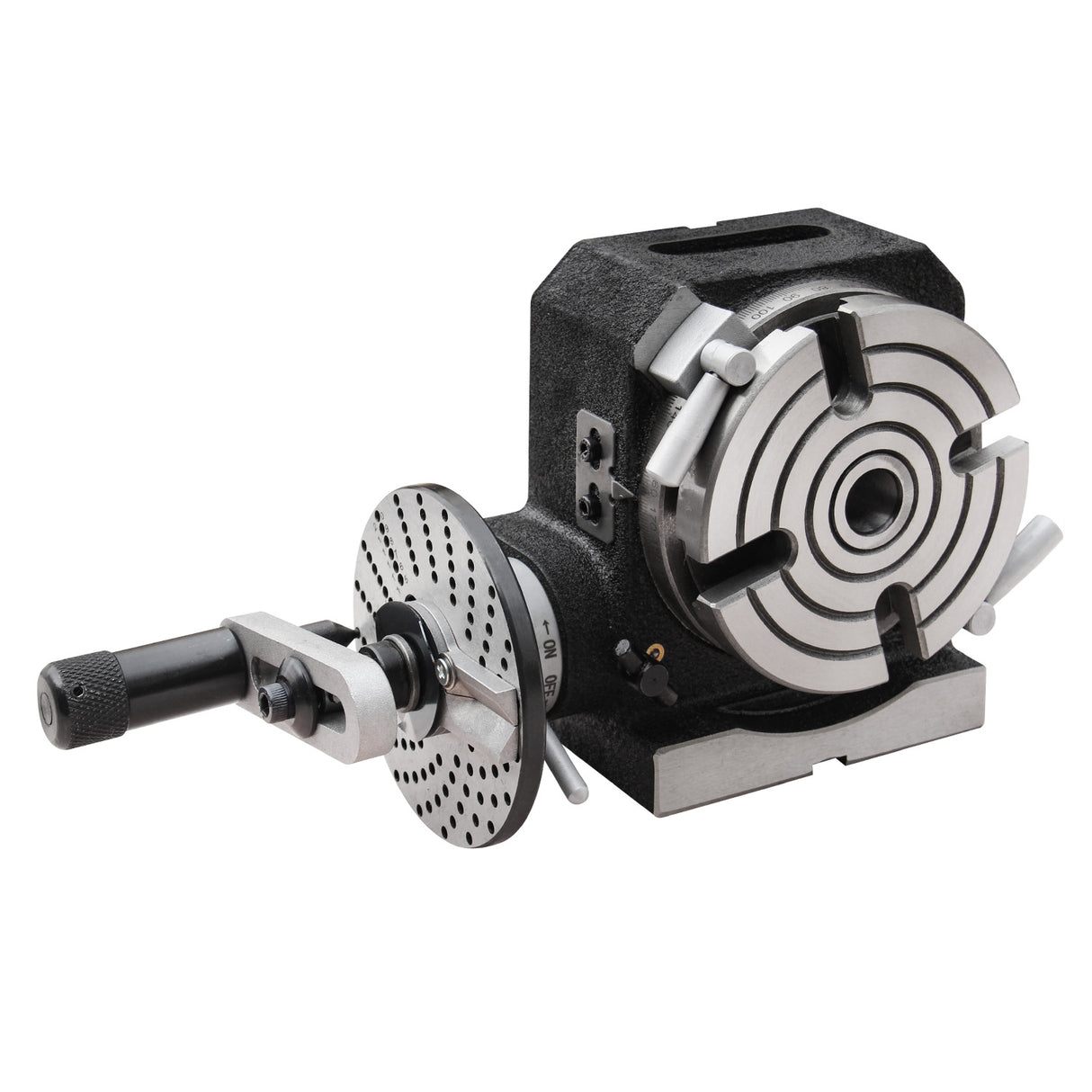

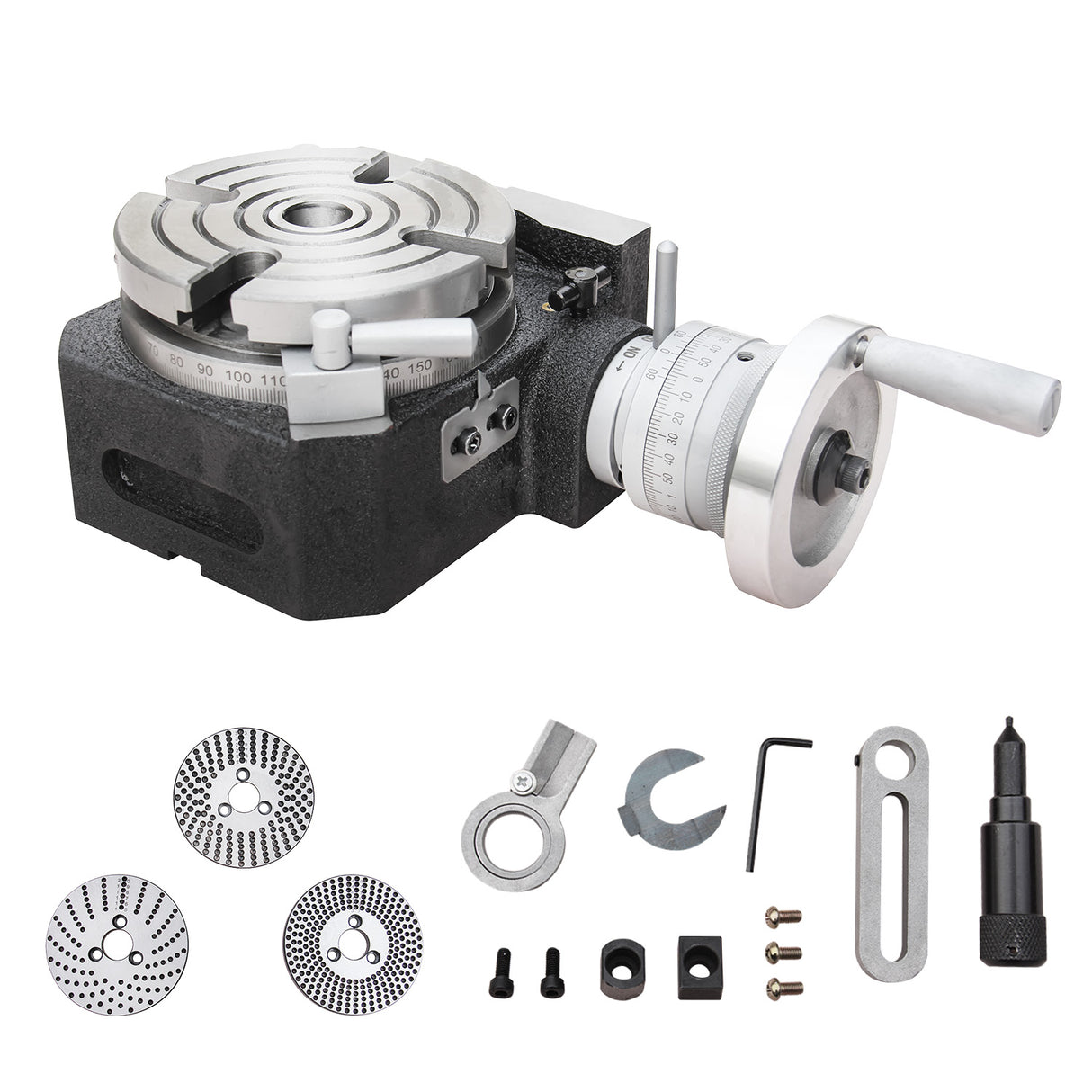

4" Rotary table, with dividing set of 3 plates
Features

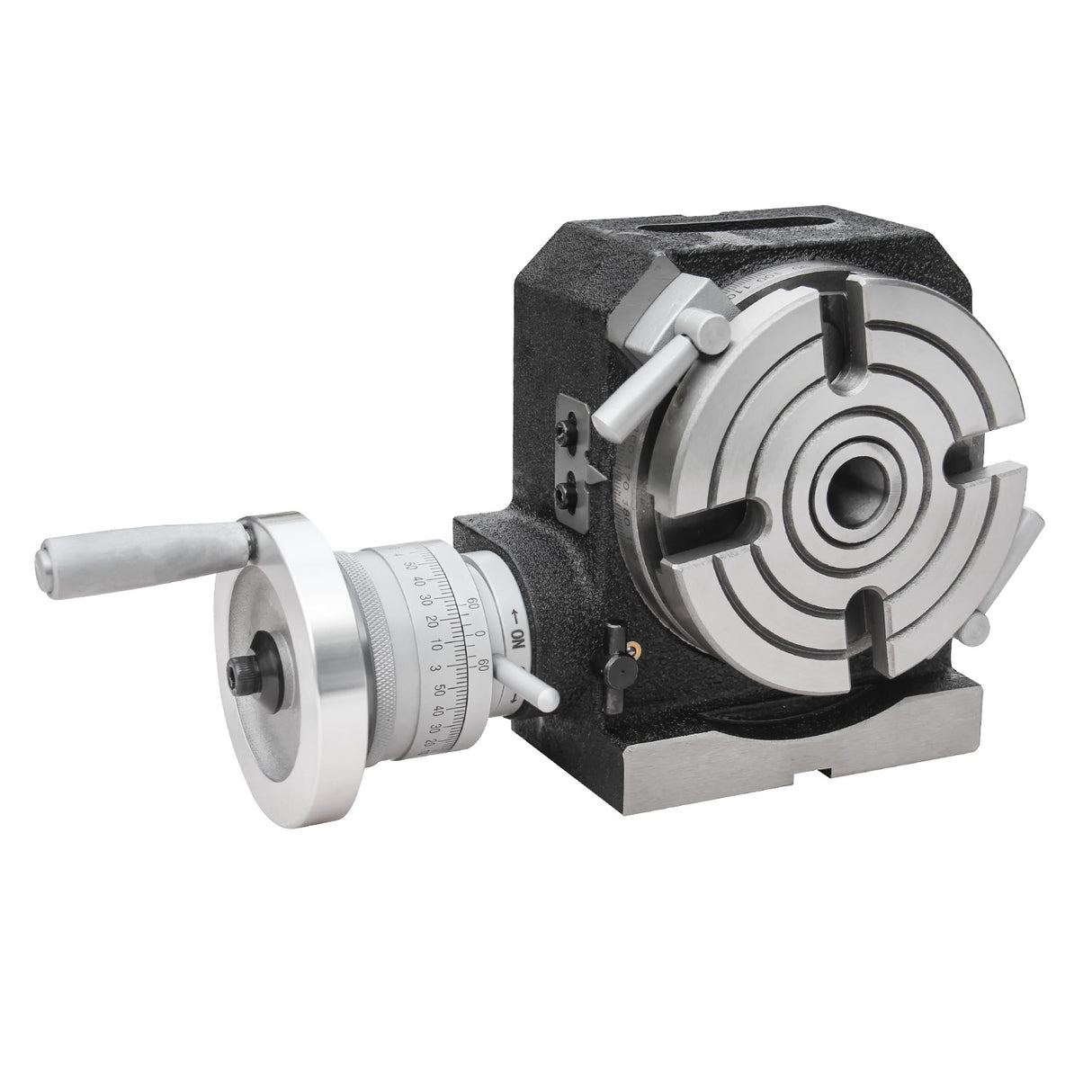

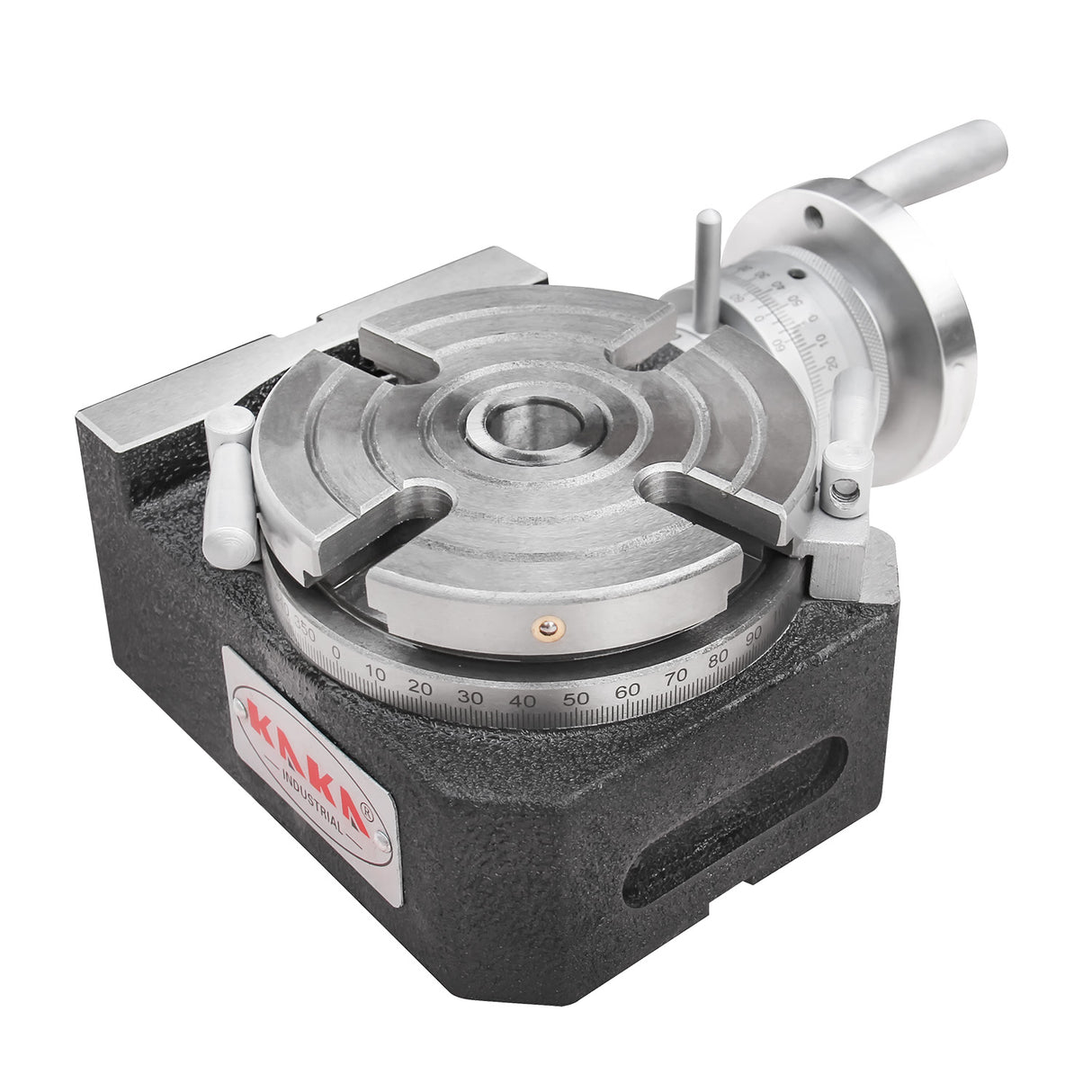

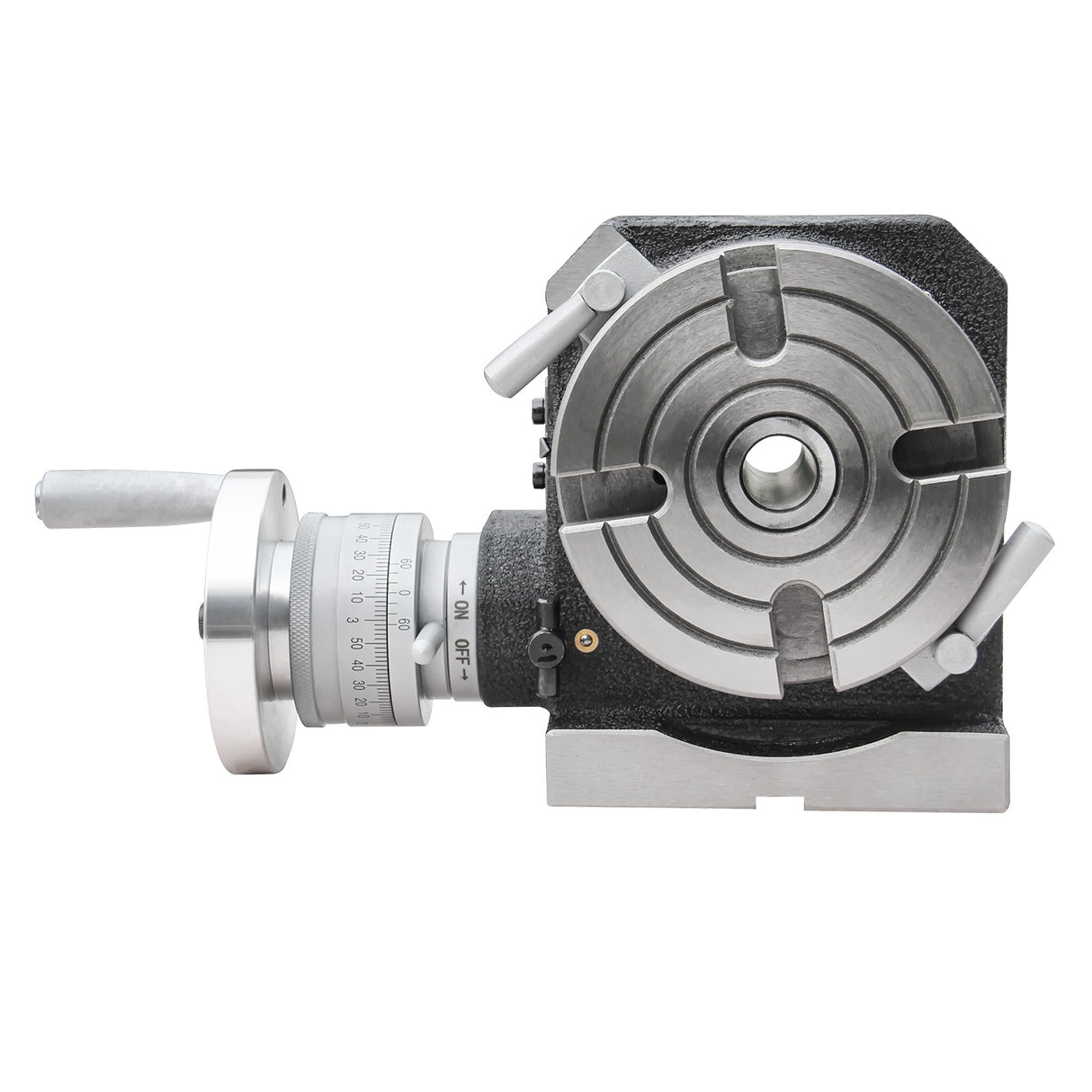

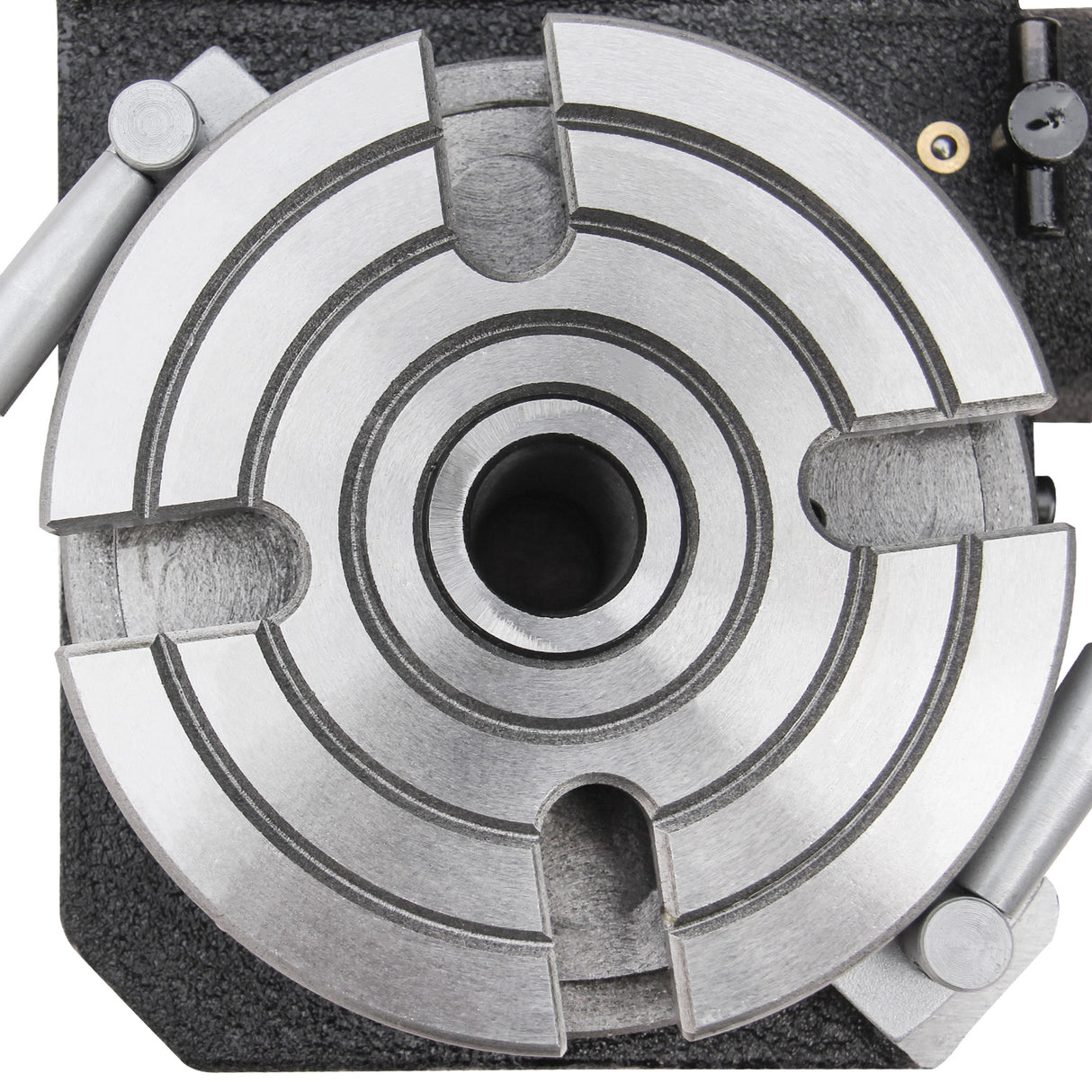

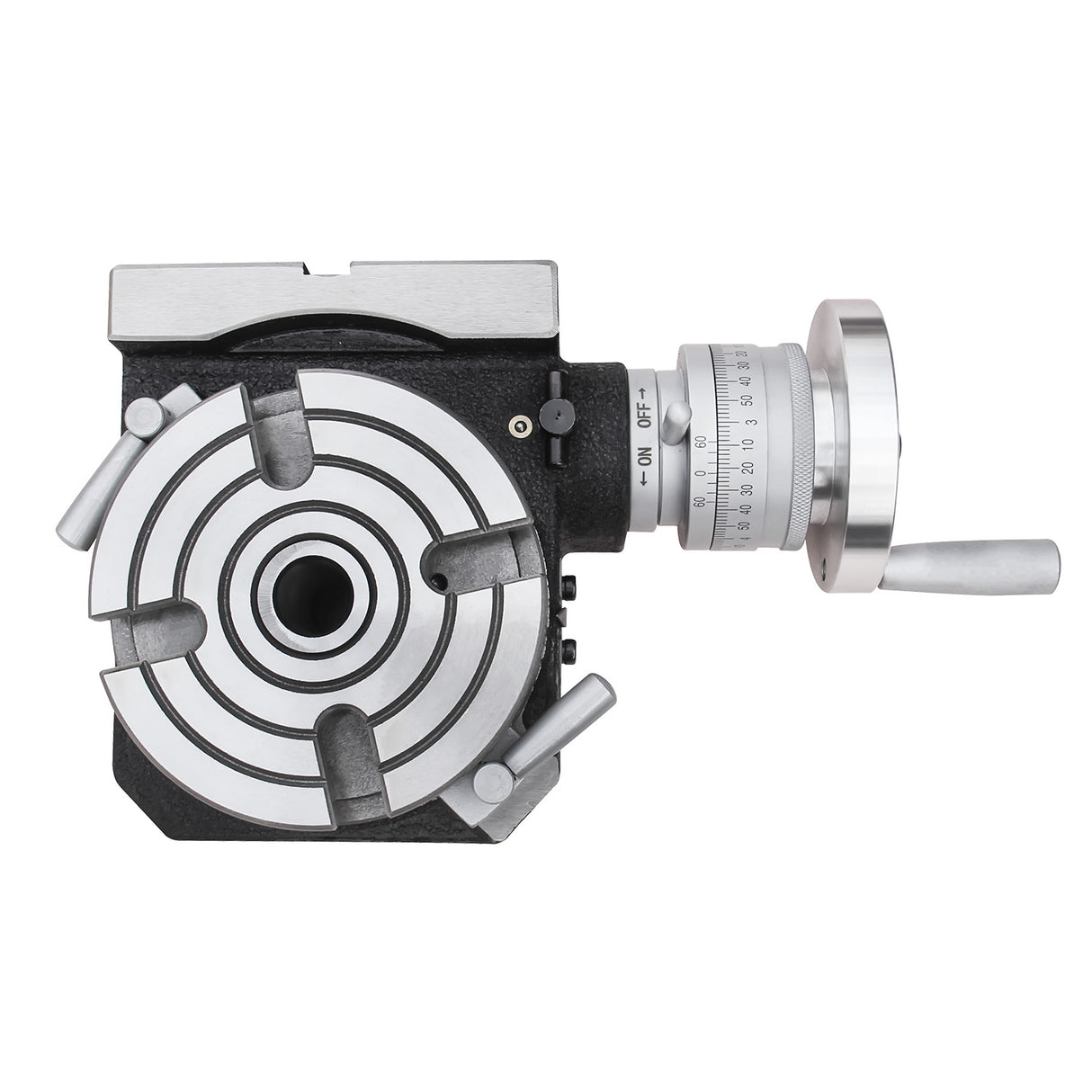

4" Horizontal & Vertical rotary table with 4 slots
Hardened and ground work 72:1 ratio

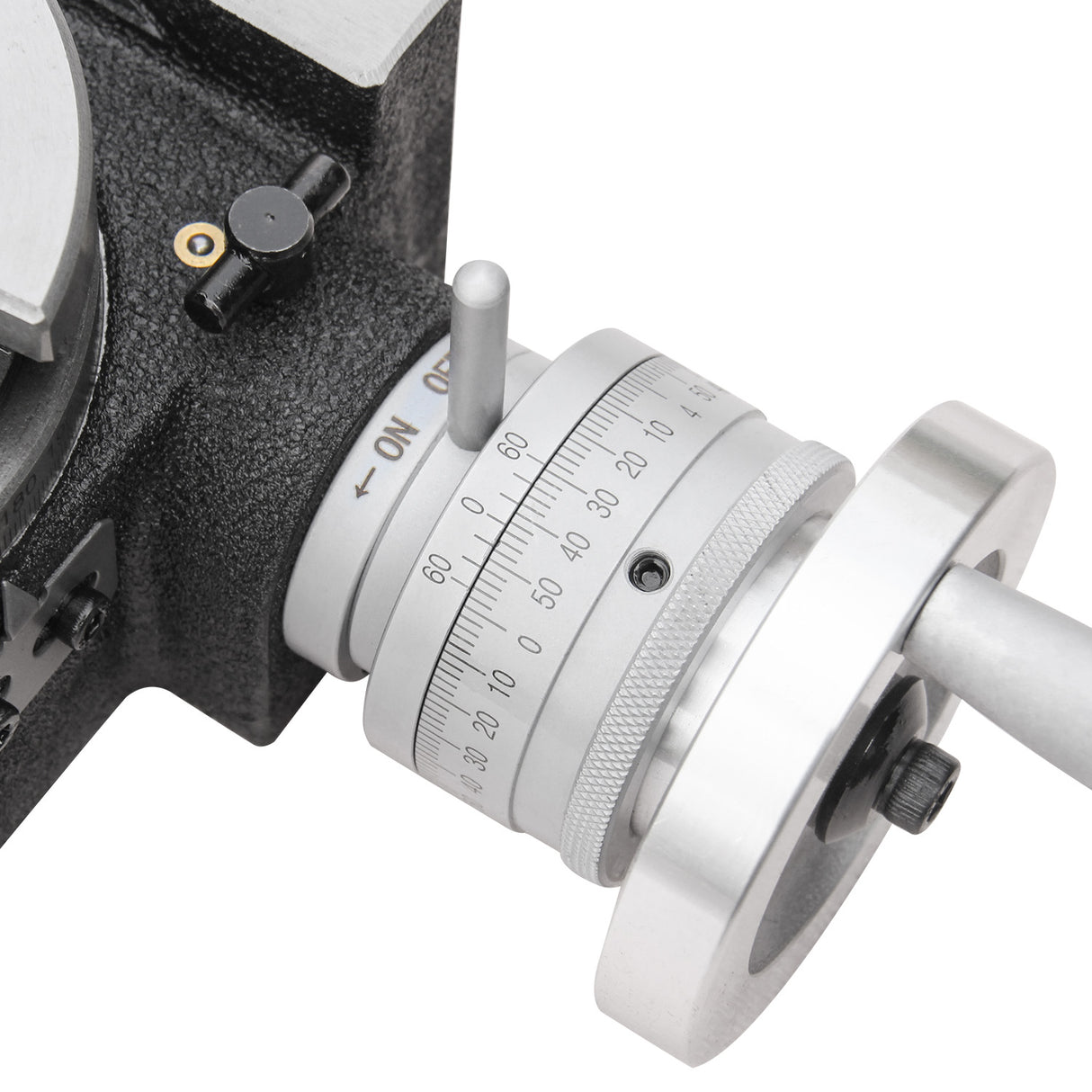

360° table graduation
85 mm table height
Center bore MT2

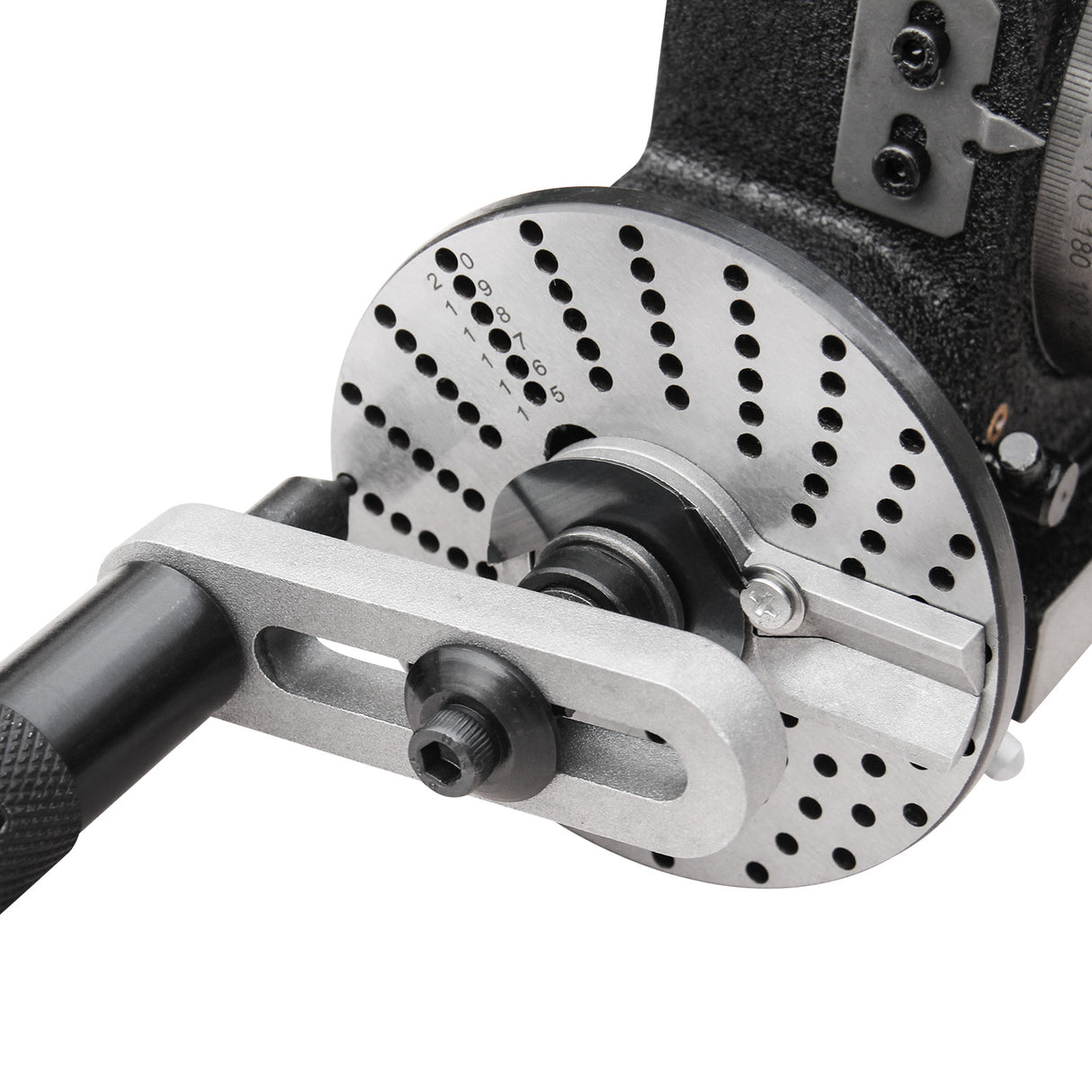

Comes with 3 pcs of index plate
Number of holes of the dividing/Index plate
HV-4 Installation dimension
| A | B | C | D | E | H | M | N |
| 145 mm | 114 mm | 85.5 mm | 110 mm | 12 mm | 85 mm | MT2 | 68 mm |
Specifications
| SKU | 162311 |
| Model | HVP-41 |
| Table dia. | 110 mm |
| Morse taper of the center hole | MT2 |
| Height of center for vertical mounting | 85.5 mm |
| Width of T slot | 12 mm |
| Adjacent angle of T-slot | 90° |
| Width of the locating key | 12 mm |
| Modules of worm and worm gear | 1 |
| Transmission ratio of the worm gear | 1:72 |
| Graduation of the table | 360 ° |
| Rotating angle of the table with one revolution of worm | 5 |
| Index Plate A | 15, 16, 17, 18, 19, 20 |
| Index Plate B | 21, 23, 27, 29, 31, 33 |
| Index Plate C | 37, 39, 41, 43, 47, 49 |
| Packing size | 29x24x13 cm |
| N.W./G.W. | 10/11 kg |
