KANG INDUSTRIAL GD-25 Vertical Drill Machine with Gear Head, 25mm Drilling Capacity, 415V Motor

$3,135.00
Tax included Shipping calculated at checkout.


Pre-order now to make sure you don't miss out!

As soon as it's in stock, we will ship it to you.

Subscribe to our newsletter

Get the latest updates on all our new collections, sales, offers and product arrival dates.

Pre-Order

Please call 03 9791 3377 for availablity

Description

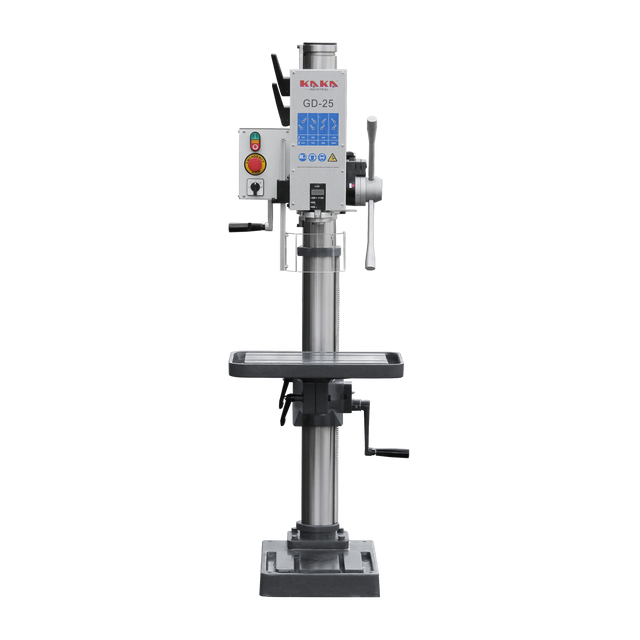

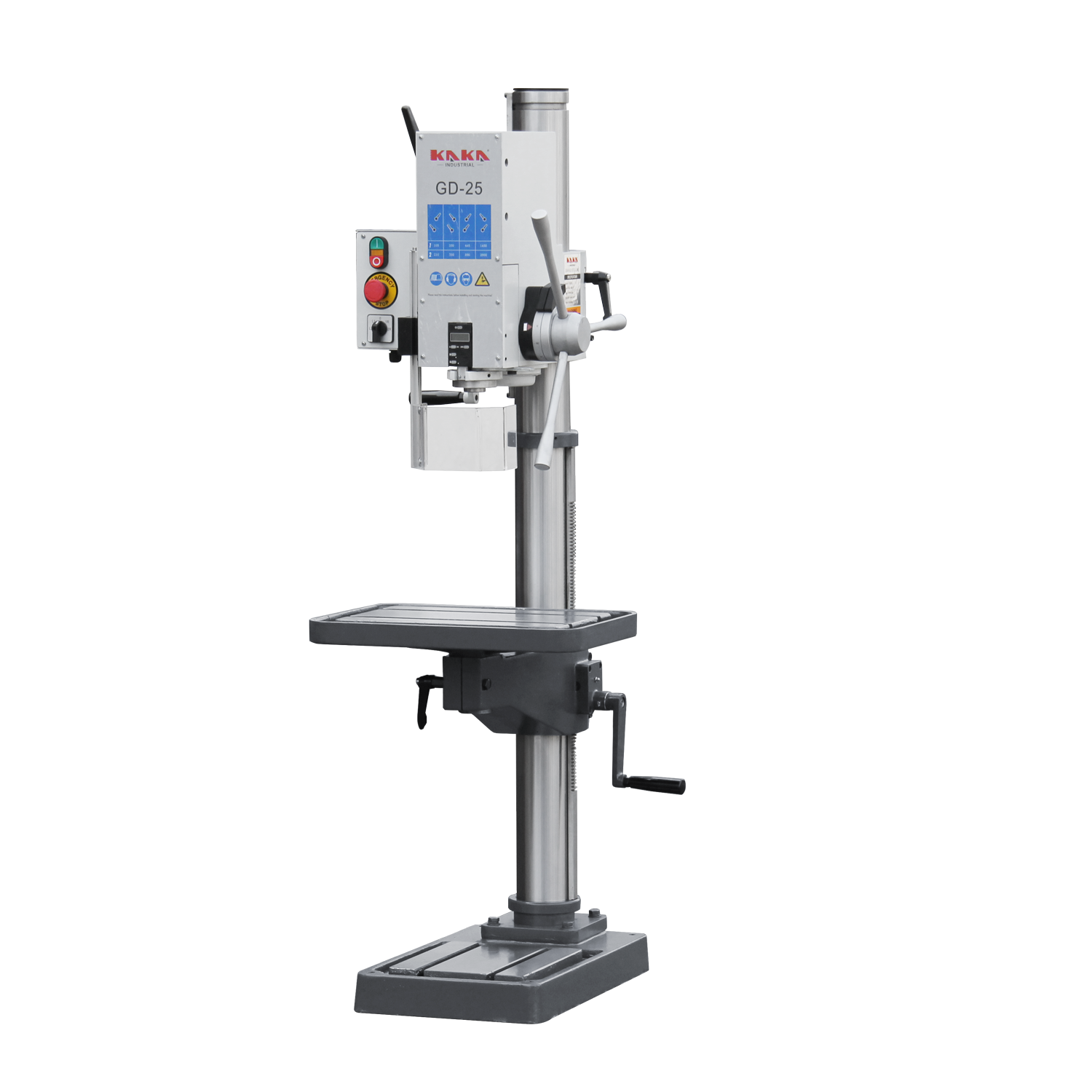

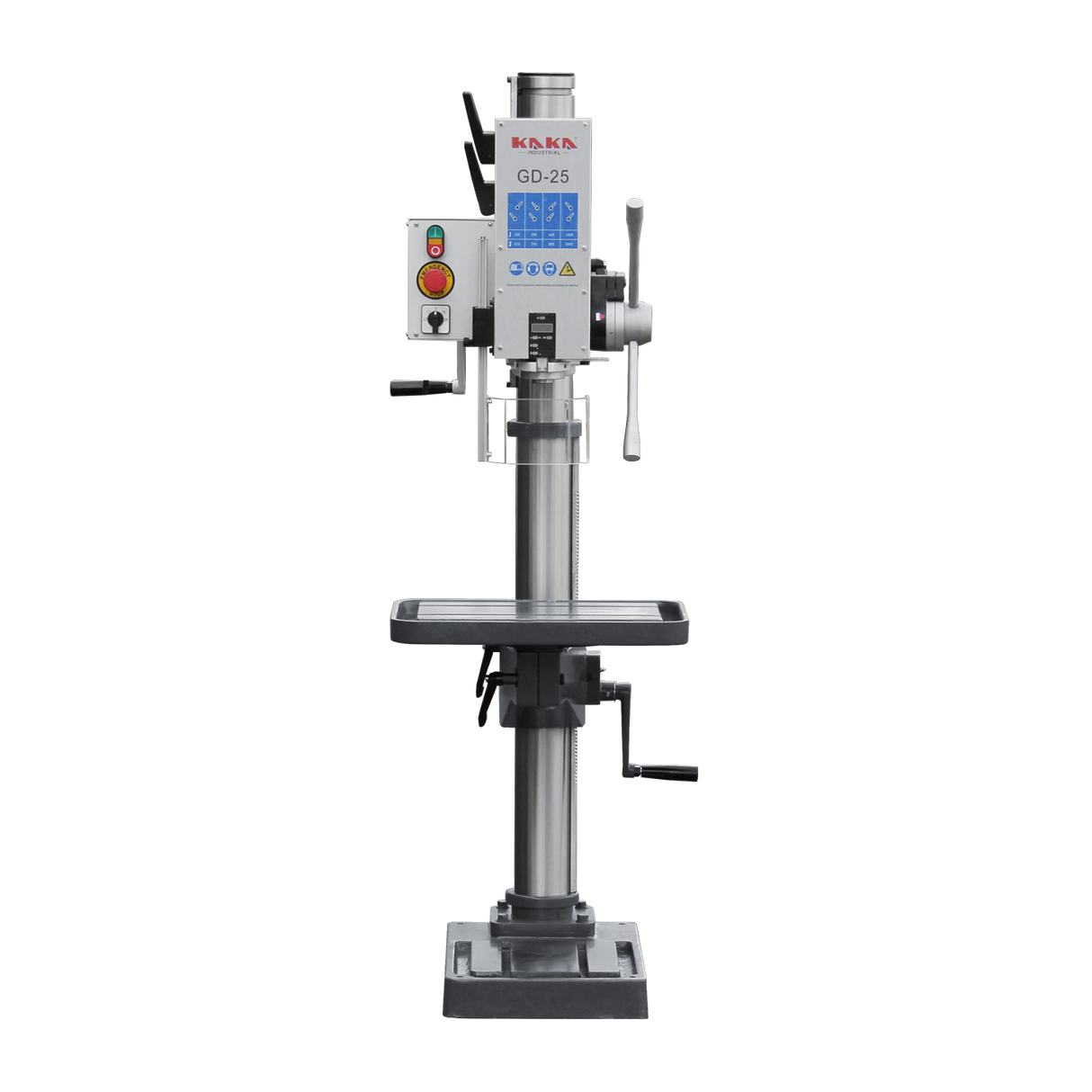

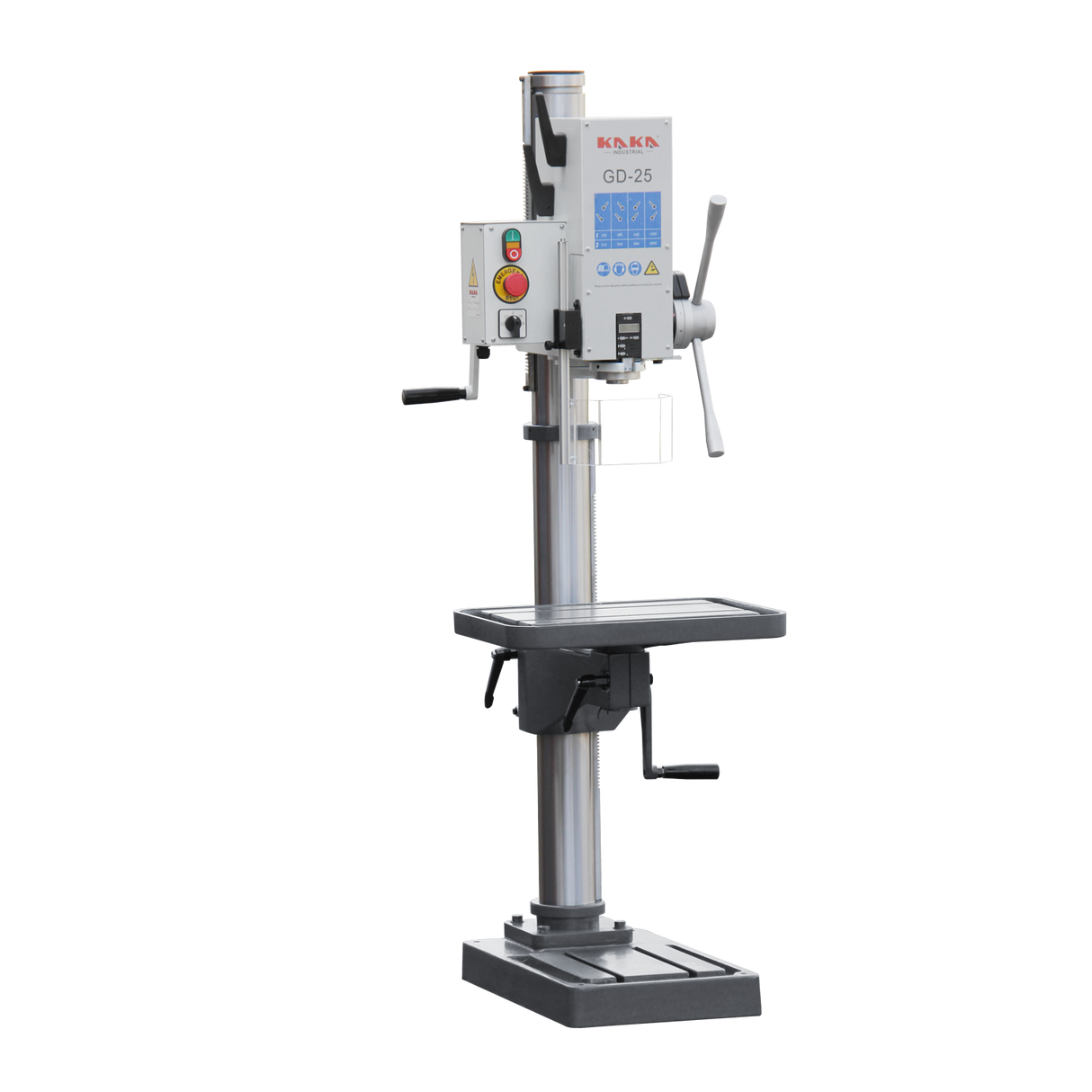

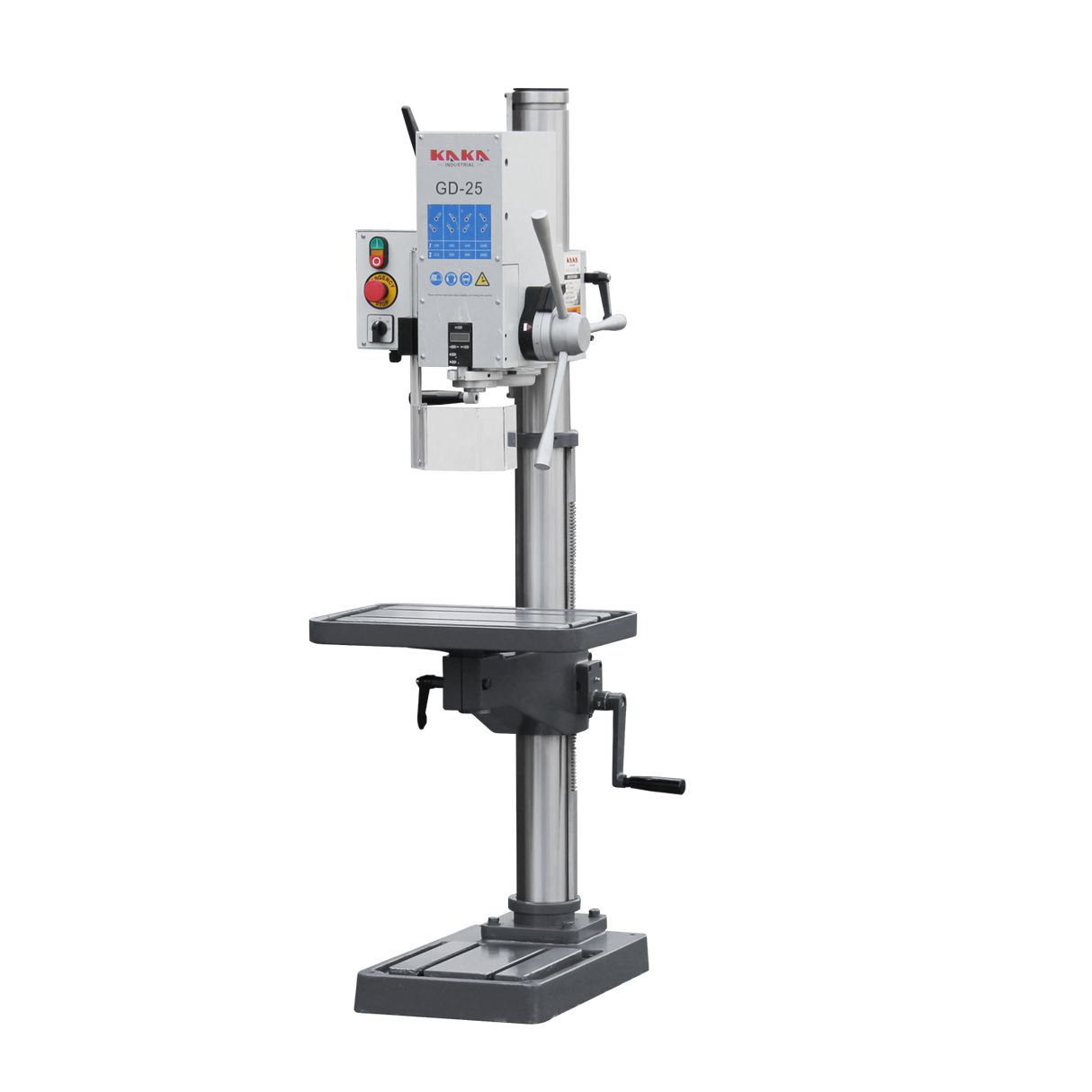

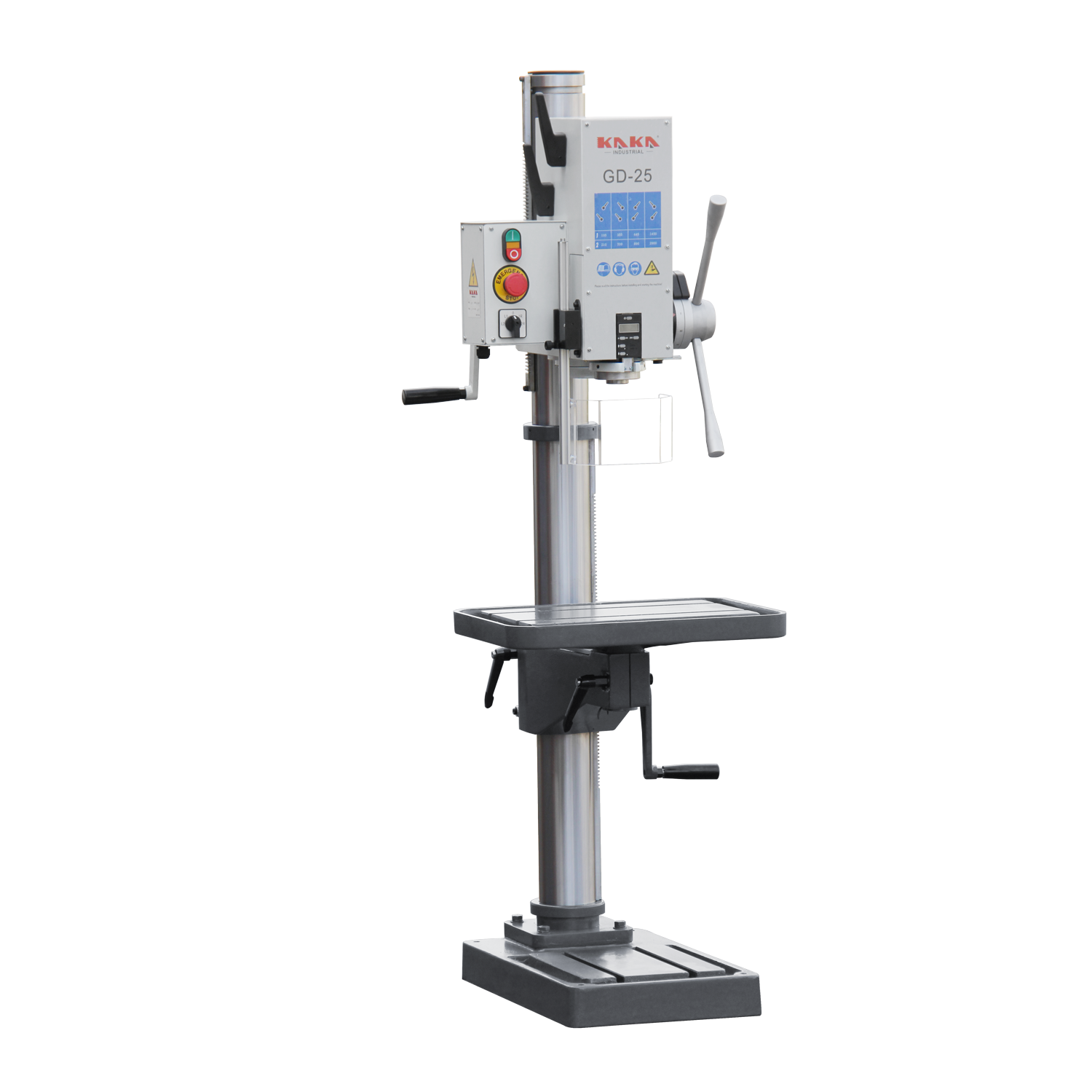

Kang Industrial Vertical Drill Machine GD-25

25mm drill capacity, MT3 Spindle taper, 8 drilling speed



Features

Industrial grade drilling machine geared head, 415V Motor

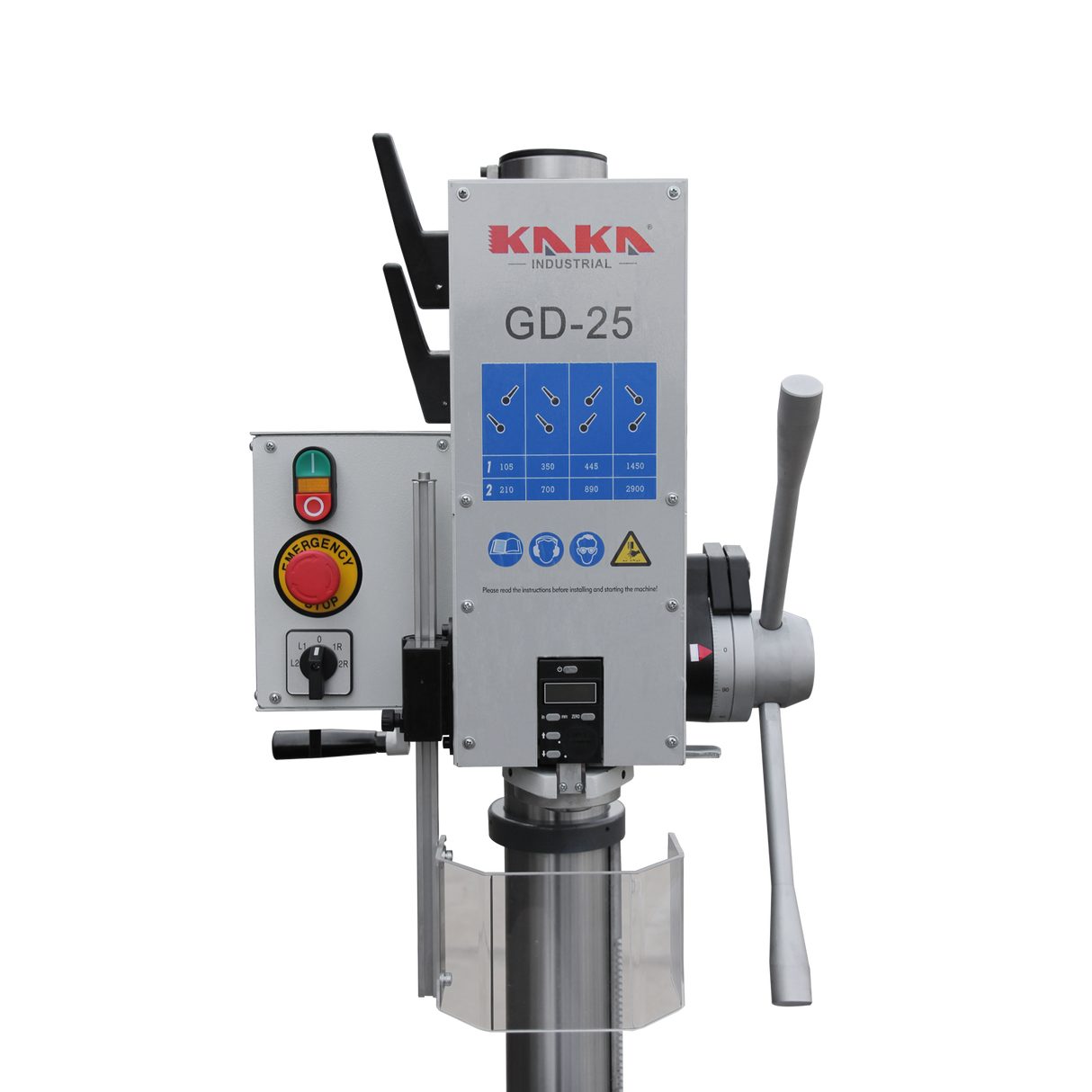

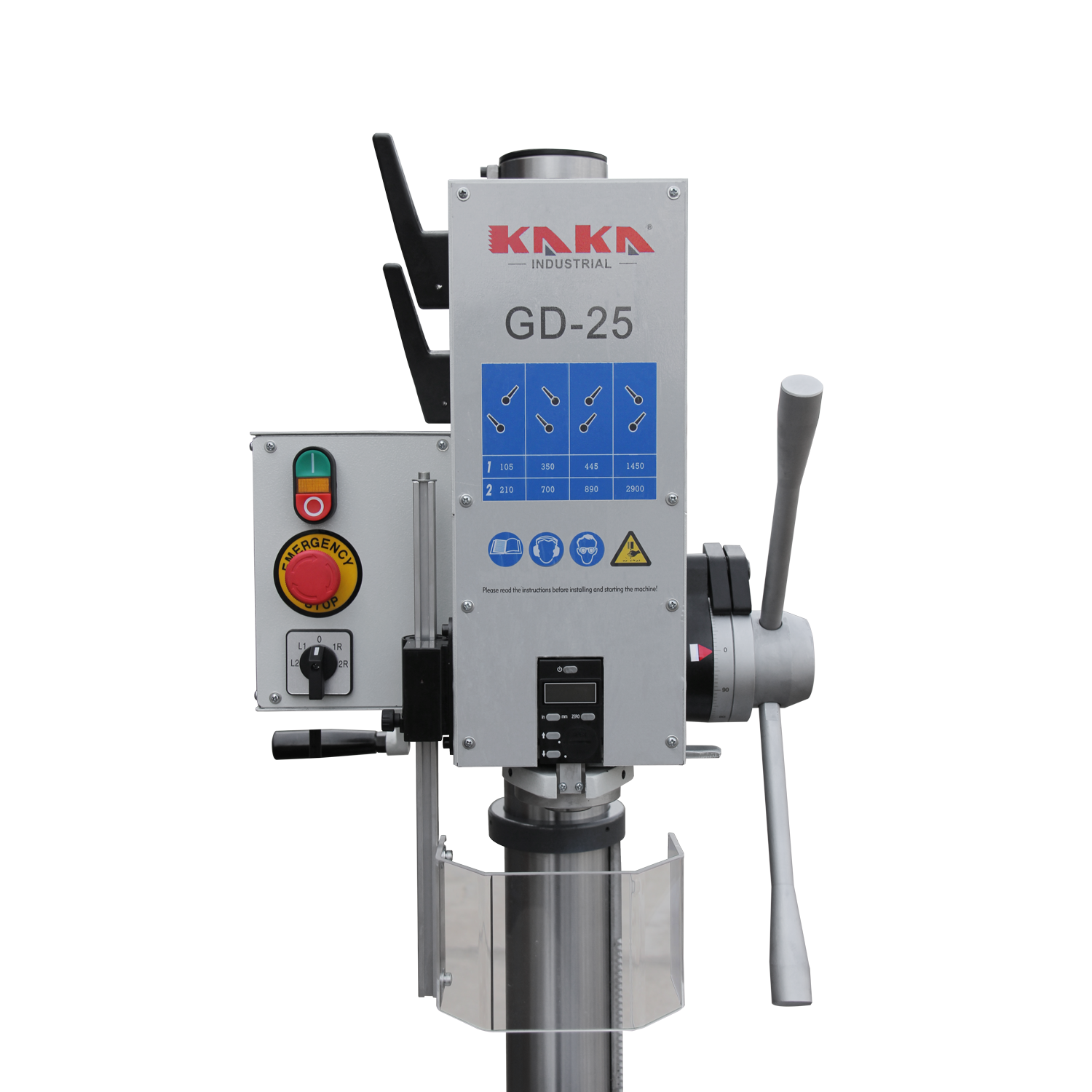

High / Low with forward reverse switch, drilling, manual tapping

8 different drilling speeds by the speed lever, 105-2900 rpm

Interlocked spindle safety guard

Sturdy 100mm dia. column reduces flexing to ensure accurate results

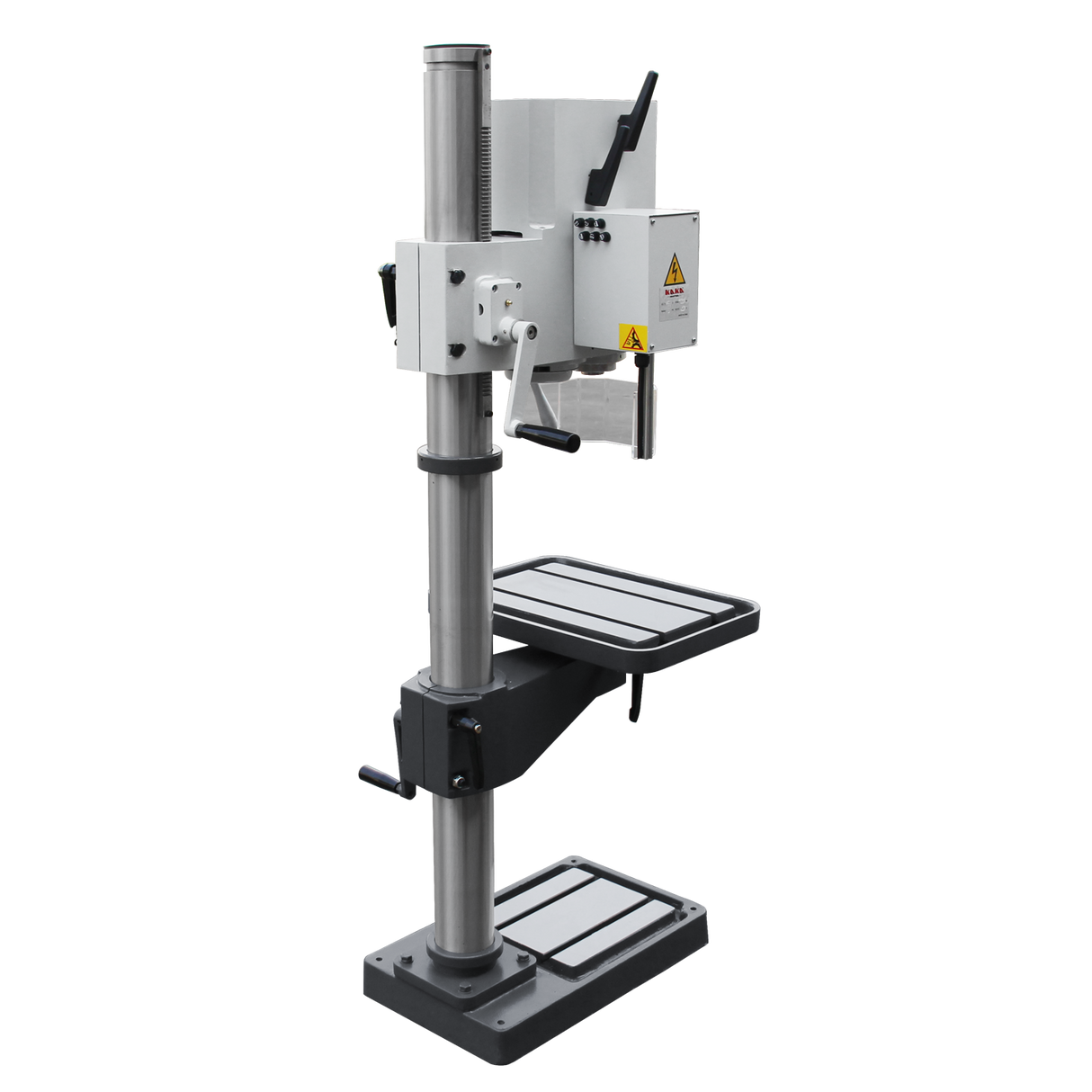

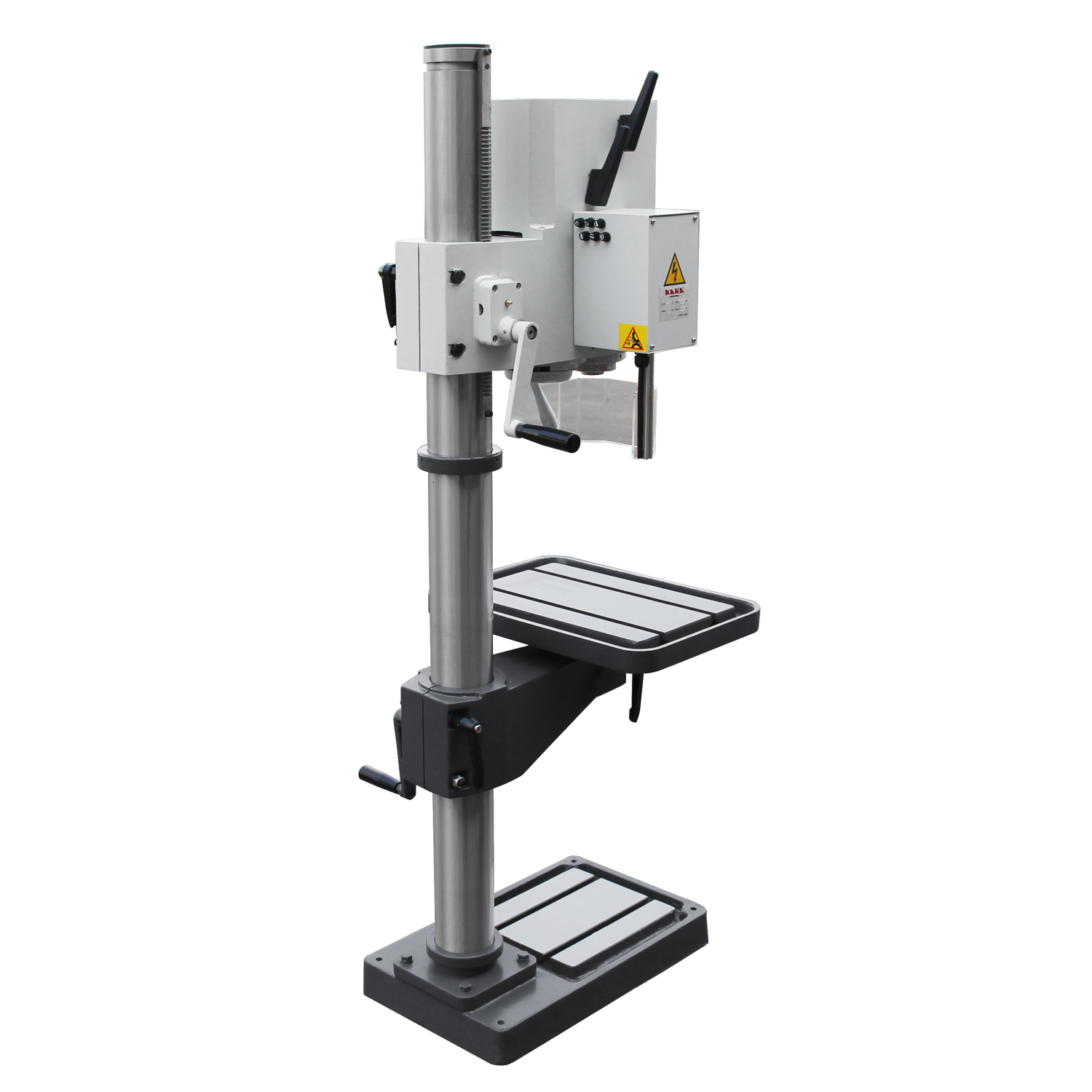

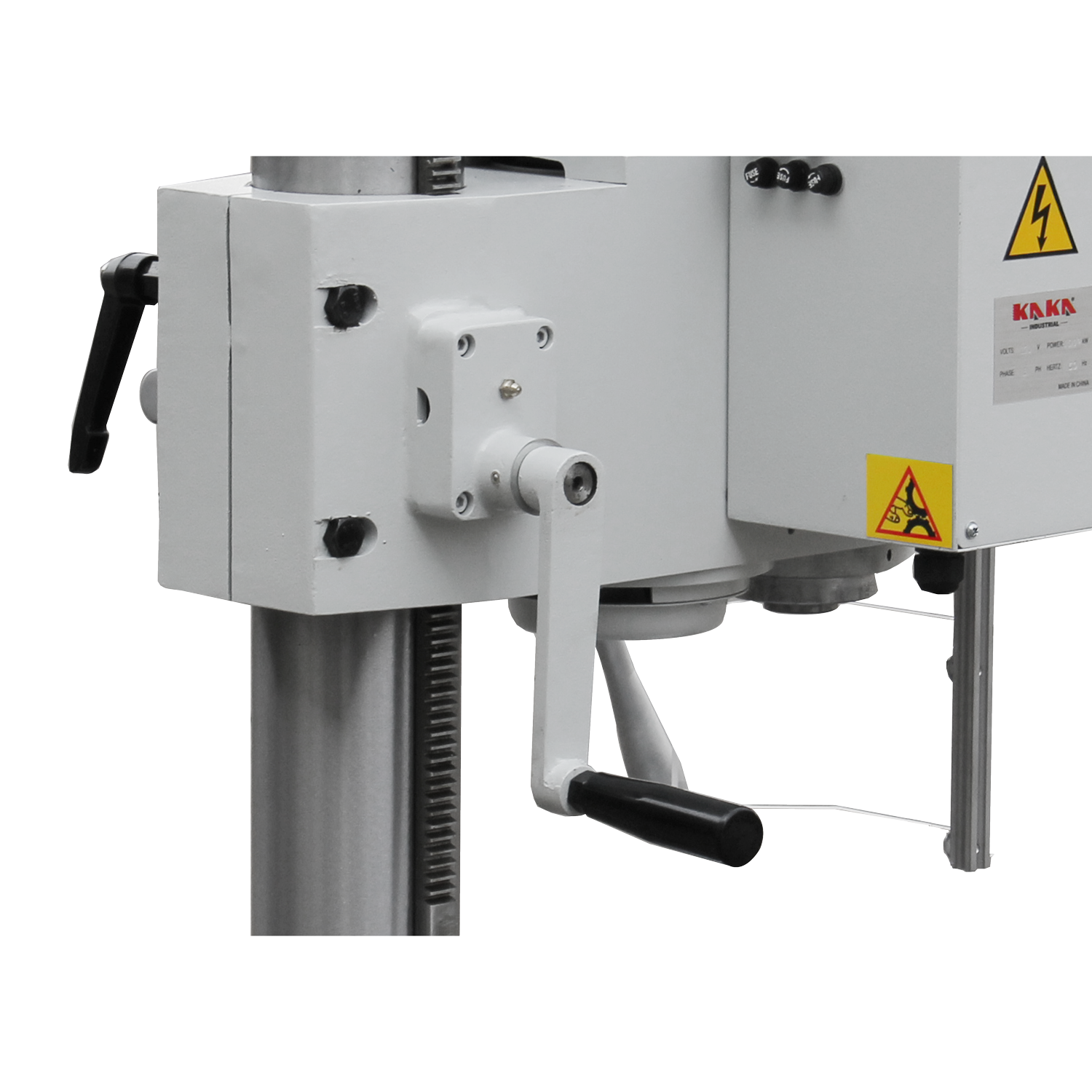

With rack and crank handle, easily adjust the head & table up and down on the column

Worktable rotates 360 degrees

T slotted base for big high size material

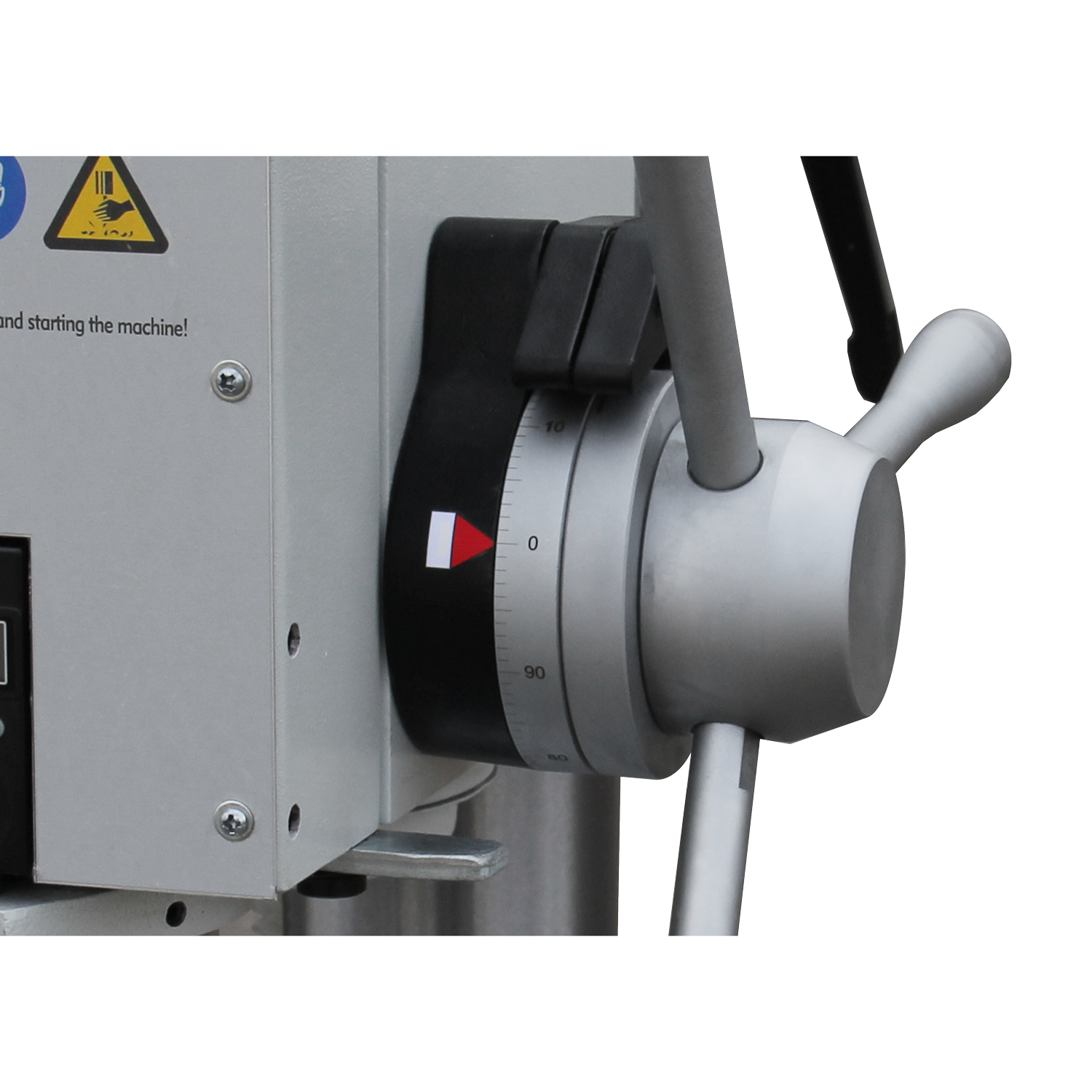

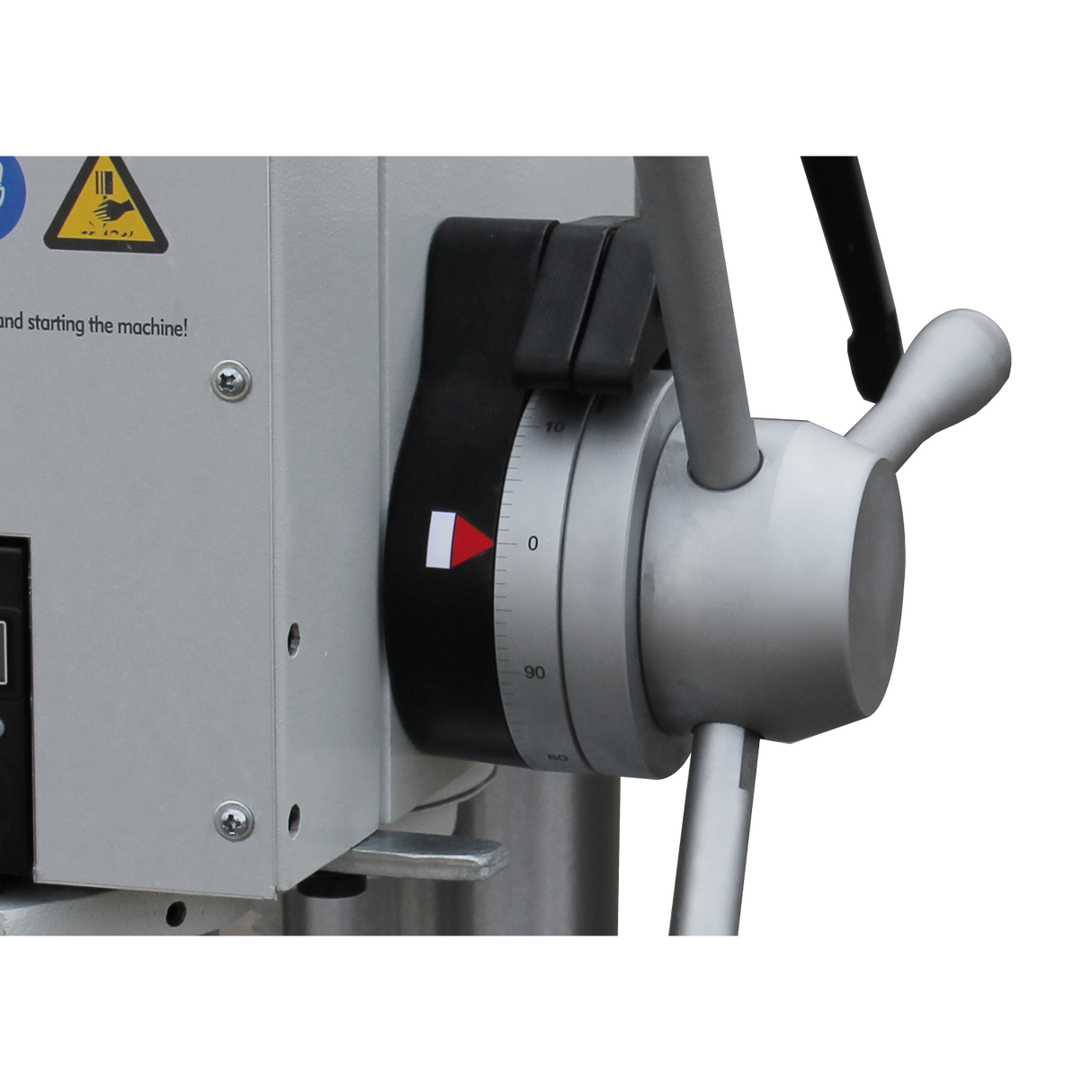

A digital depth reader to get drilling depth

Standard with Keyed drill chuck arbor, Drill Drift, safety guard



Specifications

SKU 190017V415
Model GD-25
Max. drilling dia. 25 mm
Spindle taper MT3
Spindle travel 125 mmm
Tapping in Steel/Cast Iron M10/M16
Motor power 0.65/0.9 kW
Spindle speed 105, 210, 350, 445, 700, 890, 1450, 2900
Packing size 167x57x72cm
N.W./G.W. 210/245 kg
