KANG INDUSTRIAL PTY LTD  |  SKU: 188025V240

KANG Industrial CS-9 Metal Cutting Chop Saw Circular Saw, 225mm Saw Blade High Speed Steel Blade, Heavy Duty Double Clamping Vice Miter Saw

$1,573.00
Tax included Shipping calculated at checkout.

Delivery and Shipping

Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.

Regional Australia address many need extra shipping cost

Business at home is treated as Residential

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

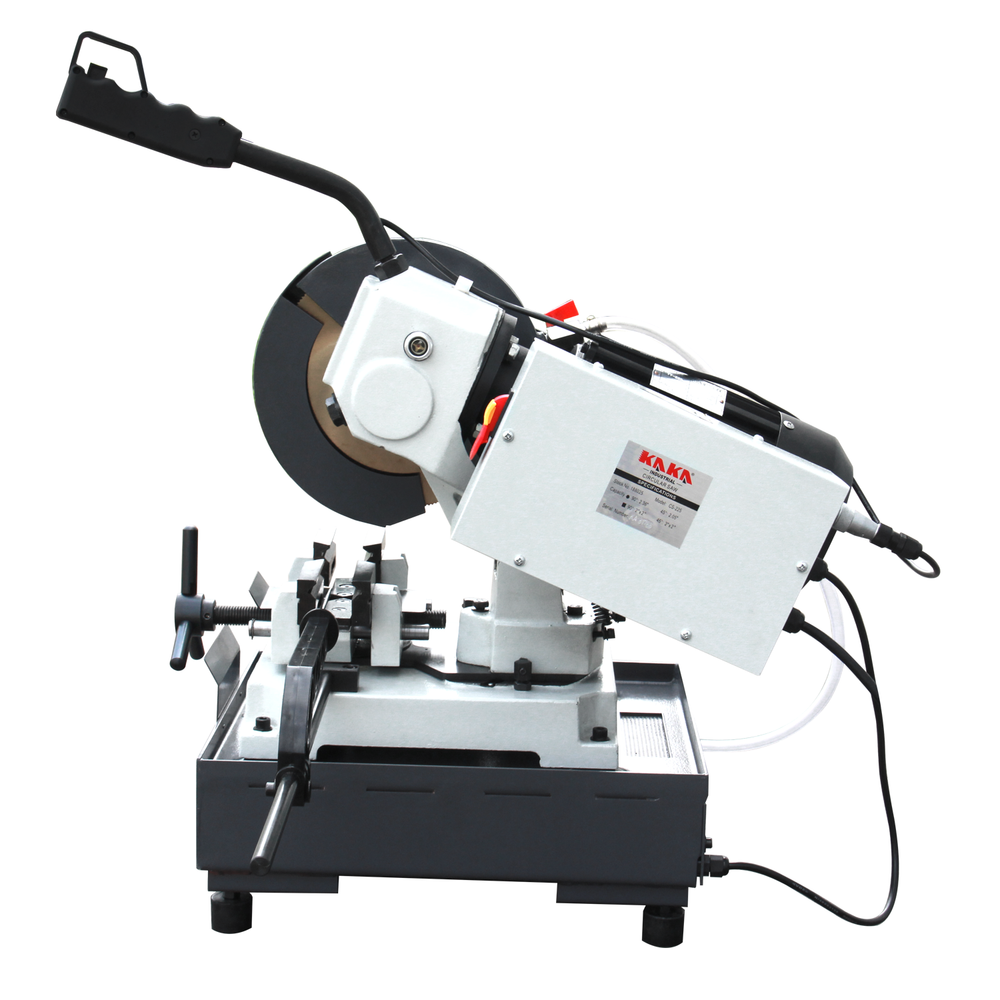

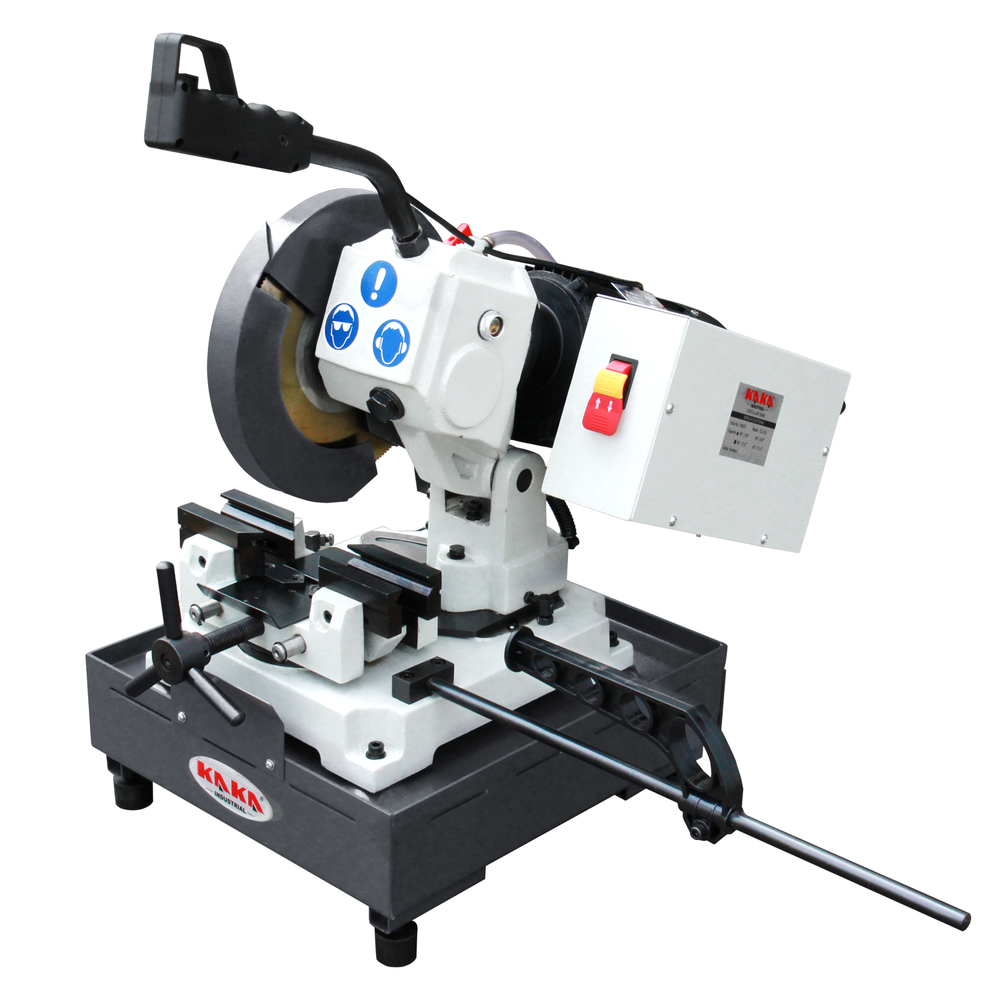

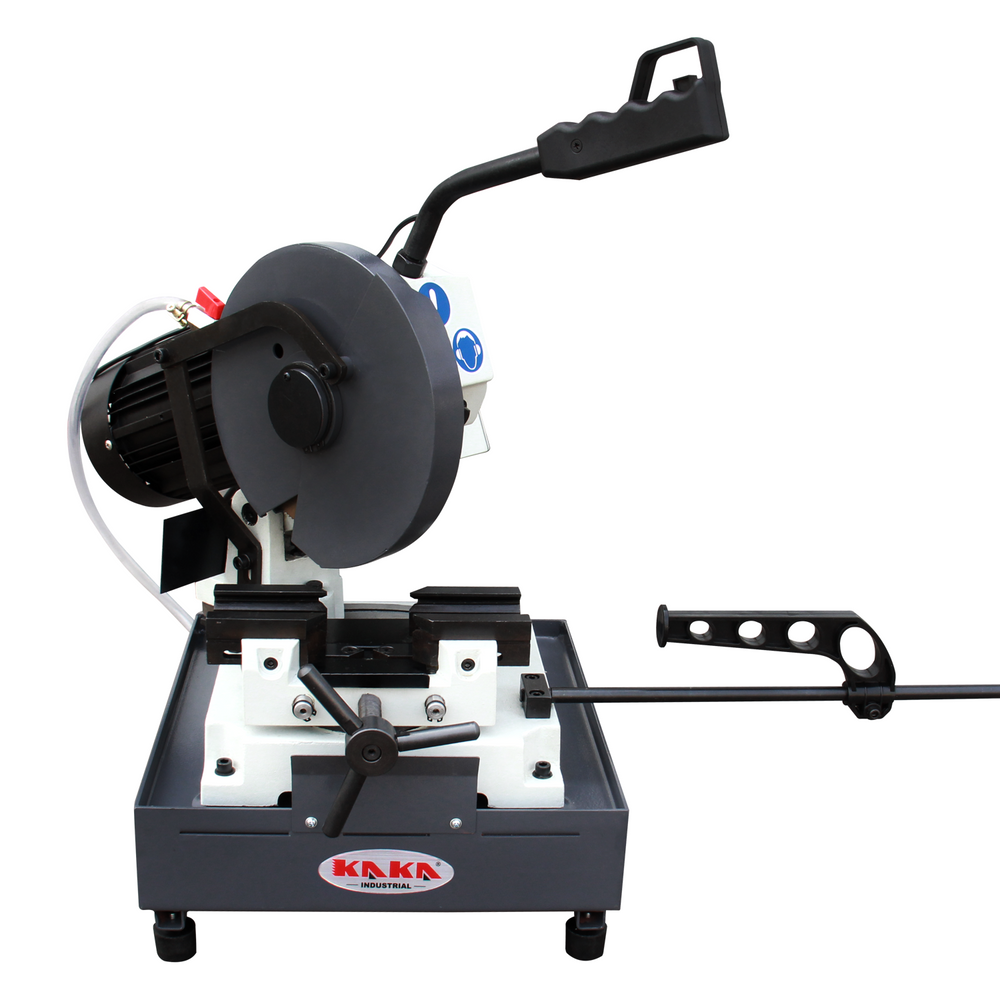

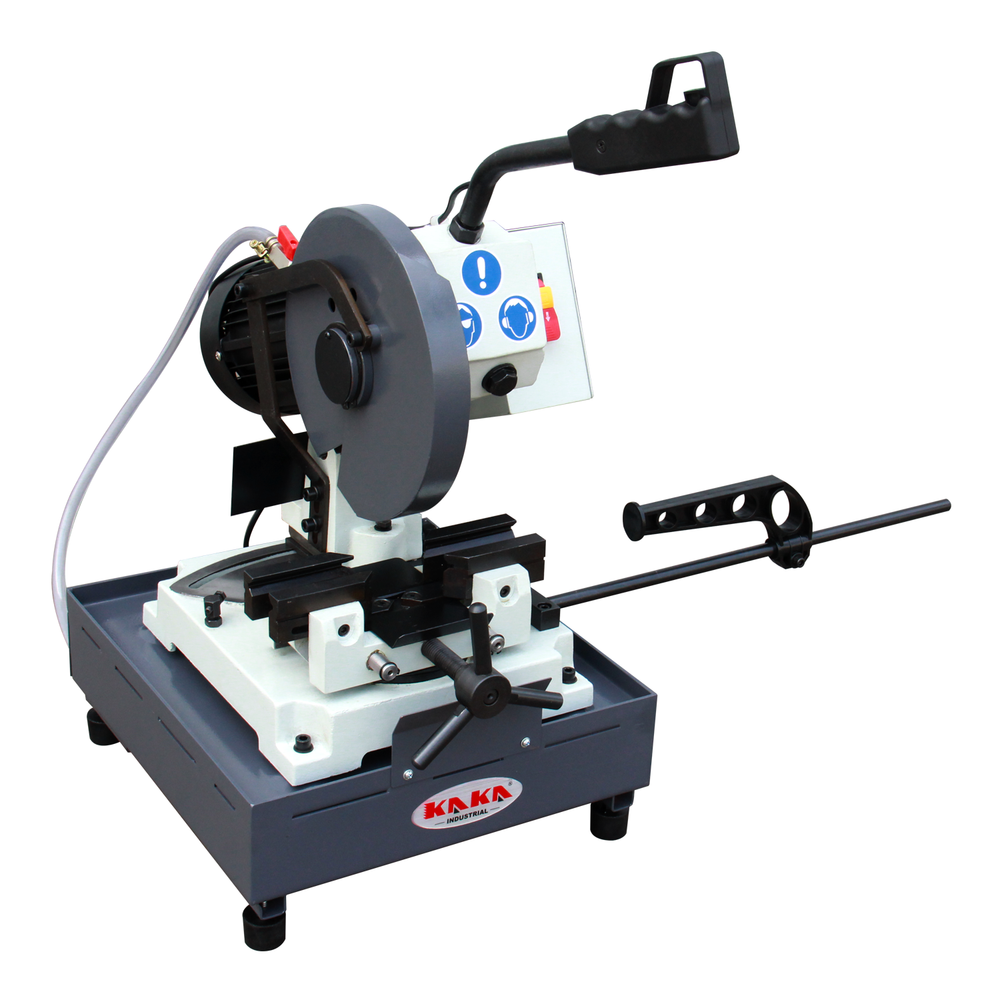

KANG Industrial CS-9, OD 225mm Cutting Blade Circular Saw

Accepts 225mm OD saw blade, makes burr-free cutting on tubes



Features

Comes with a 9" blade

Max. cut 60mm at 90°

Miter cuts up to 45 degrees to the left side

1 HP motor runs on 240V power and could be used anywhere

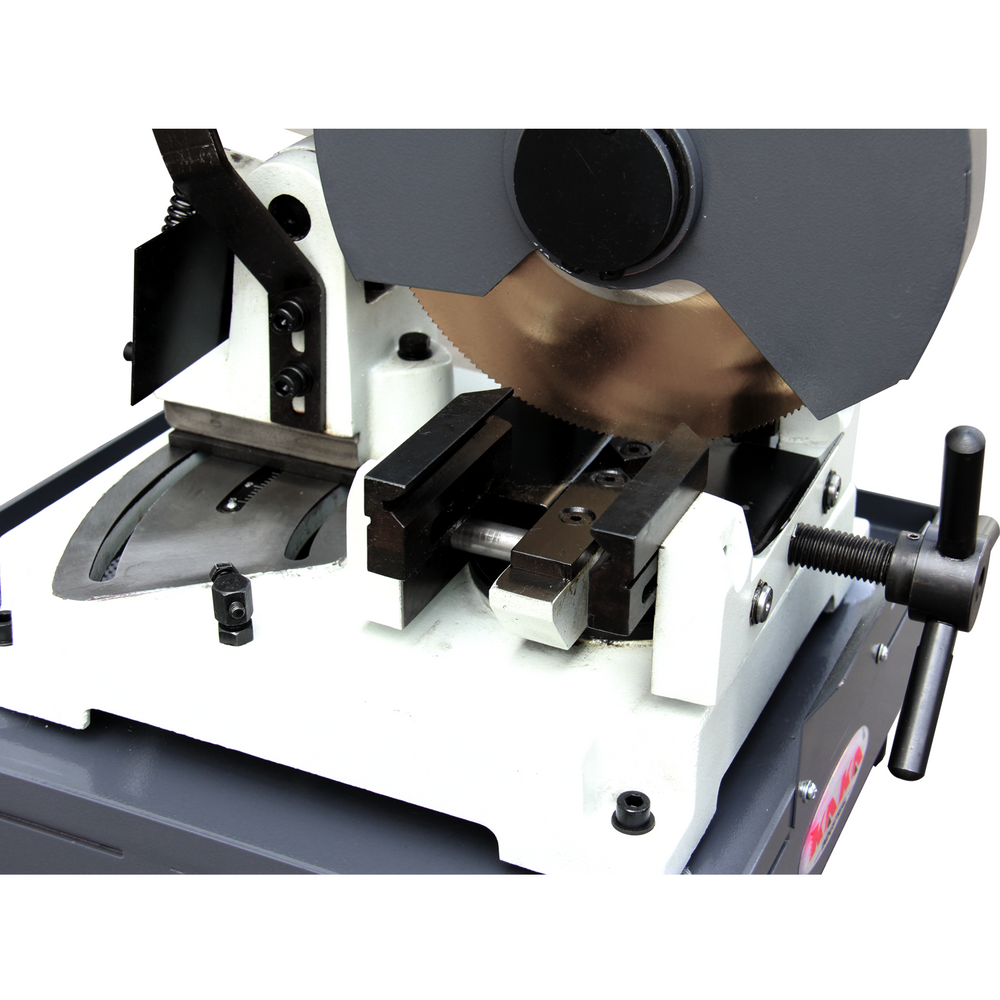

Self-centering vise keeps the material in the right position

A direct-drive gearbox ensures proper alignments and long-term use

Stop rod helps with repeatability for small production runs

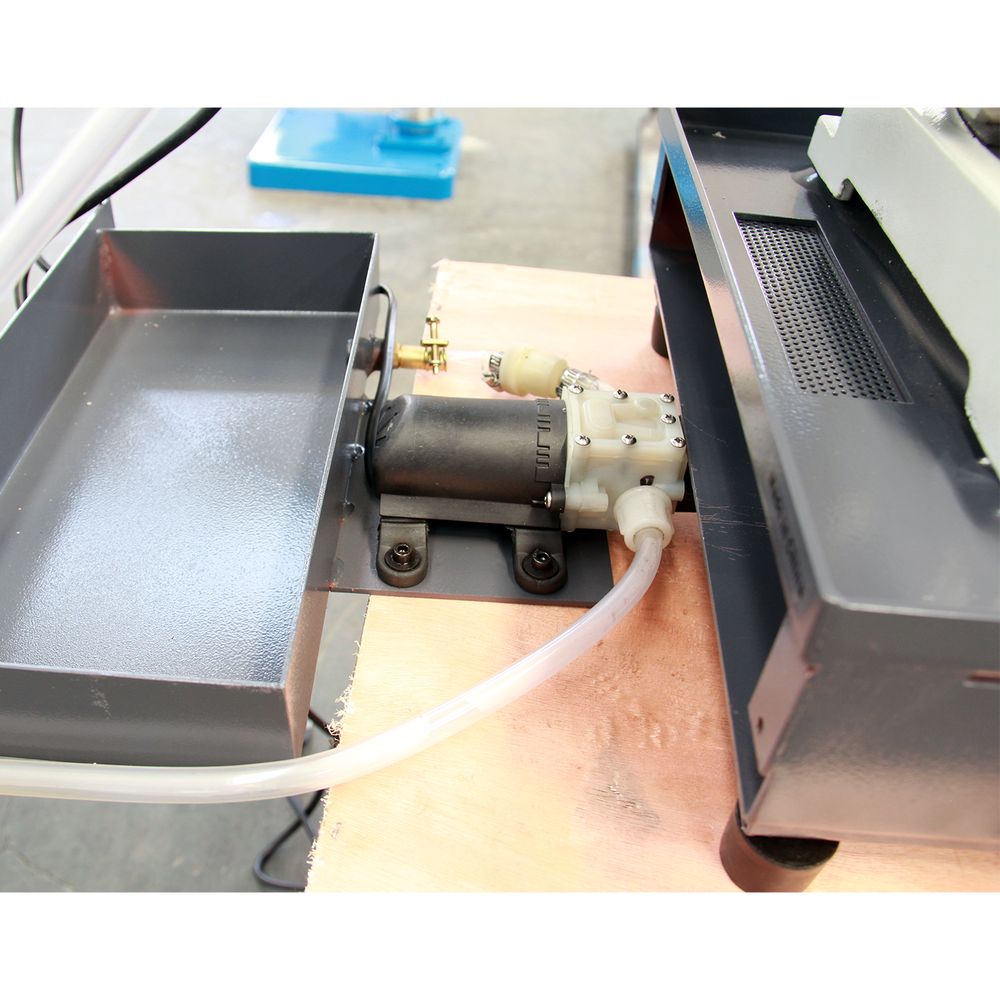

Standard coolant system

Specifications

SKU 188025
Model CS-9
Max. Blade size  9"/225mm
Cut circular @90° 2.36"/60mm
Cut rectangular @90° 1.97"x1.97"/50x50mm
Cut circular @45° 2.1"/52mm
Cut rectangular @45° 1.97"x1.97"/50x50mm
Blade Speed 46 rpm
Vice Opening 2.8"/70mm
Power 750W/1 HP, (1PH)
Packing size 71x50x62 cm
N.W./G.W. 63/75 kg
